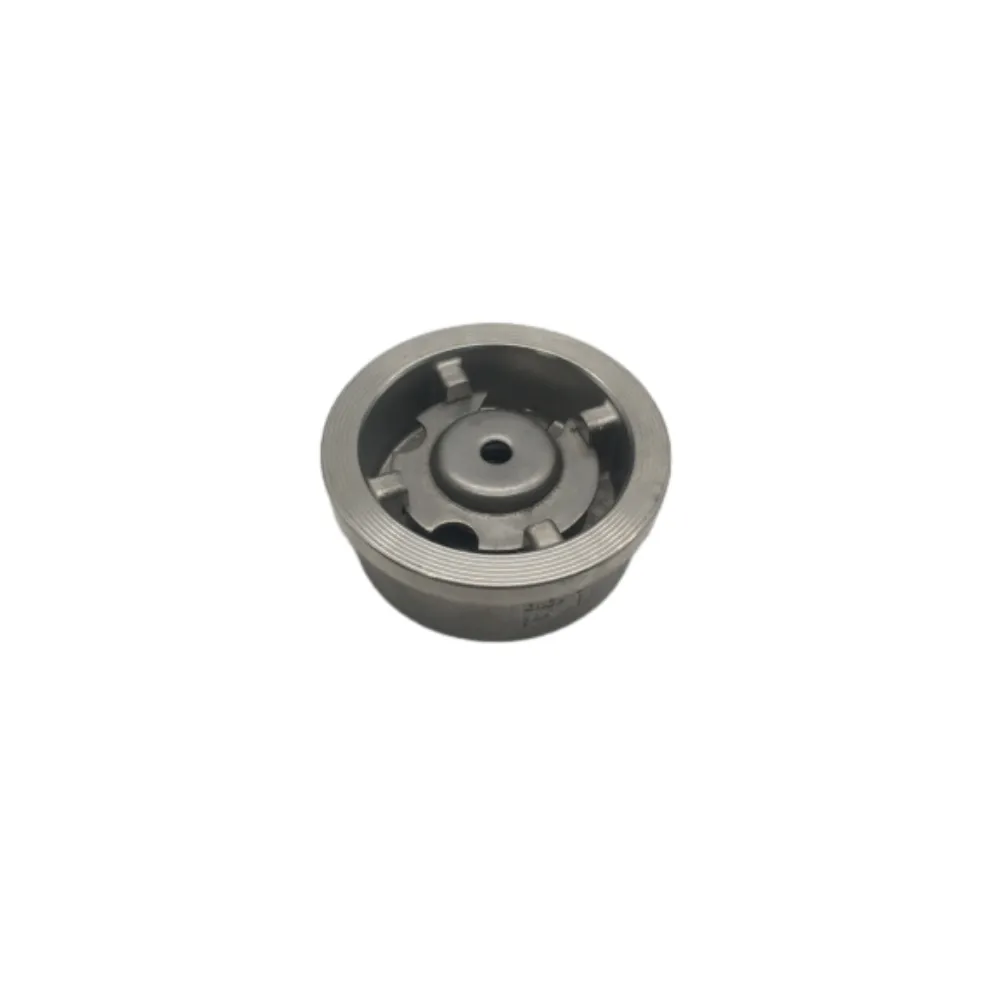

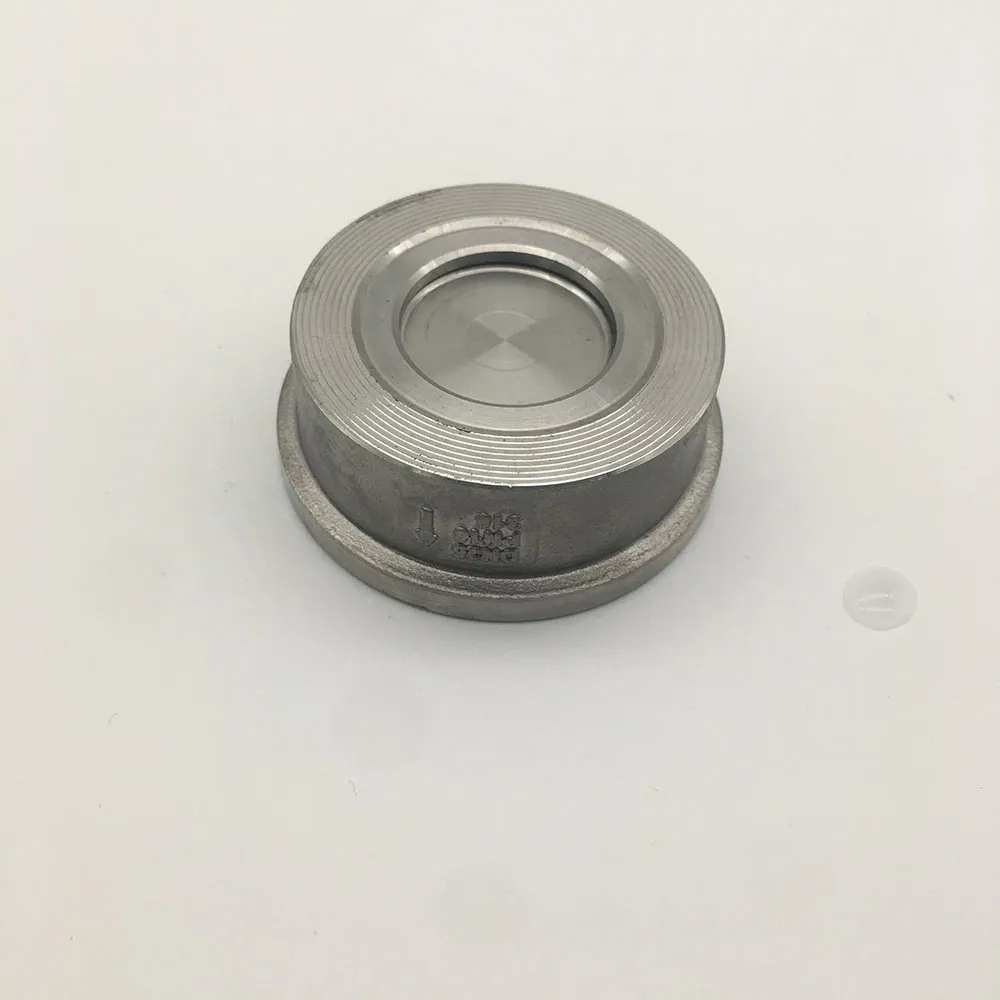

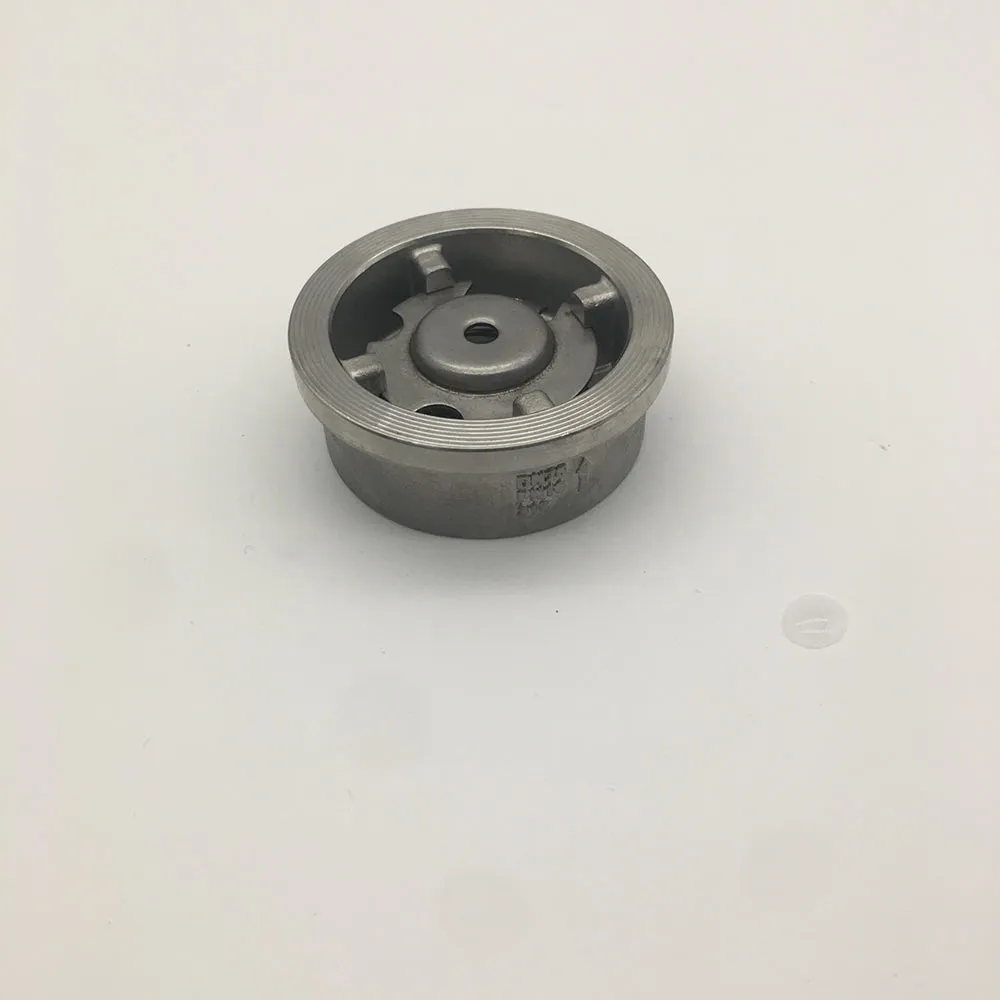

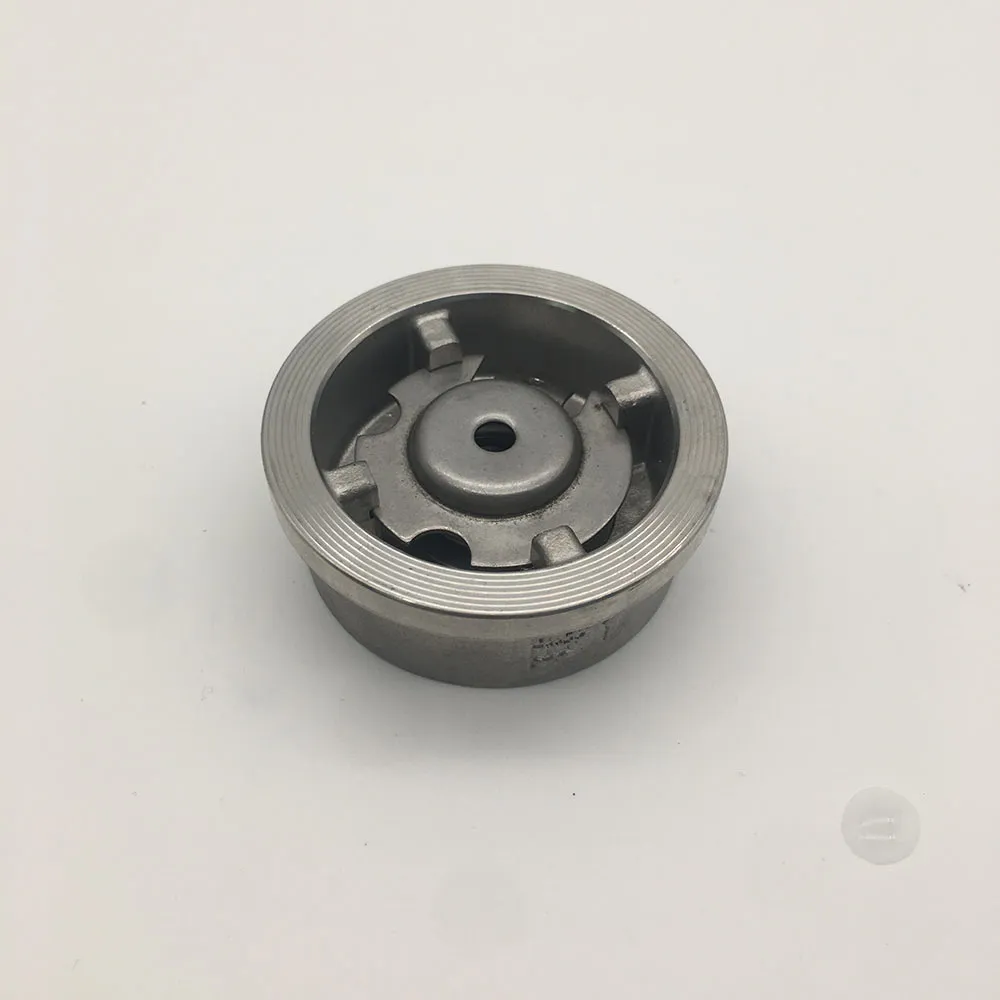

Disk Check Valve: fast-install wafer performance that plants actually use

If you’ve ever fought with cramped pipe galleries, you know why a wafer-style check is a godsend. This model, built in Liupangzhuang Village, Nanchentun Town, Yunhe District, Cangzhou, Hebei, is designed for horizontal or vertical mounting, which—speaking from too many site visits—really speeds up commissioning. Stainless steel body options and other corrosion-resistant alloys let it run on water, gas, steam, and mildly corrosive services without drama.

What’s trending, and where this valve sits

Three themes keep popping up in check valve discussions: compactness, lower pressure drop, and documented compliance. Wafer bodies reduce weight and freight; spring-assisted discs tame water hammer; and buyers increasingly ask for API 594 face-to-face and API 598 leak testing out of the box. Hydrogen blending and reclaimed-water loops are also pushing materials toward 316/duplex. To be honest, documentation is half the sale now—MTRs, PMI, and traceable heat numbers.

Typical use cases

Booster pump discharge lines in municipal water (vertical install is common).
Steam condensate return where space is tight and closing speed matters.
Compressed air and inert gas headers in general industry.
Light corrosive chemical transfer with Viton or PTFE seat options.

Key advantages (field-noted)

Wafer connection installs quickly between flanges; no bulky swing arm.
Spring-assisted disc helps reduce slam—operators notice the quieter stop.
Stainless body resists corrosion; seat options balance tightness and temperature.
Horizontal or vertical suitability means fewer SKUs to stock, surprisingly handy.

Specification snapshot

Parameter	Typical Value (≈, real-world may vary)
Size Range	DN15–DN300 (1/2"–12")
Pressure Class	PN10–PN40 / Class 150–300
Body Materials	CF8/CF8M (304/316), duplex options on request
Seat	EPDM, NBR, Viton; PTFE for higher temps
Temperature	-20°C to 200°C (elastomer dependent)
End Connection	Wafer, face-to-face per API 594
Leakage/Testing	API 598 / ISO 5208
Cracking Pressure	≈ 0.02–0.05 MPa (size dependent)

How it’s built and verified

Materials are sourced with MTRs; heats get PMI on incoming. CNC-machined bodies and discs are lapped for seat tightness. Springs (typically 316 or Inconel in harsher duties) are checked for rate consistency. Hydrostatic shell and seat tests follow API 598; sample sets also see cycle testing to ≈200k–500k strokes, depending on size. In corrosive service we often recommend duplex and NACE MR0175/ISO 15156 compliance. Service life? In clean water, plants report multi-year runs with only elastomer refresh.

Vendor landscape (quick take)

Vendor	Material Options	Lead Time	Certs	MOQ	Notable
Houde Valve (Cangzhou)	304/316, duplex (req.)	≈ 2–4 weeks	API 594/598, ISO 9001	Flexible	Balanced price-to-performance
Vendor A (global)	316, Hastelloy (req.)	≈ 4–6 weeks	ASME B16.34, CE/PED	Moderate	Broader alloy portfolio
Vendor B (regional)	304/316	≈ 1–3 weeks	ISO 5208	Low	Fast delivery

Customization and compliance

Seat swaps (EPDM to Viton/PTFE), special springs for low cracking pressure, and tagged QA packs are common requests. For potable water, ask about NSF/ANSI 61. For sour gas, NACE MR0175 is the usual benchmark. Documentation lovers: you can get hydro certificates and dimensional reports on request.

Field notes (mini case studies)

Municipal booster upgrade: swapping old swing checks for Disk Check Valve units cut surge noise noticeably; operators logged fewer nuisance trips over three months. In a packaging plant’s compressed air header, a 316-body Disk Check Valve with Viton seat ran a year without measurable leakage—routine PM only.

What customers say

“Install was 15 minutes, including coffee,” one supervisor told me—slight exaggeration, but the wafer form factor does feel that quick. Others point out the predictable closing behavior: less clatter, fewer callbacks.
