Innovating Fluid Control: The Strategic Advantage of 3 Piece Ball Valves
In the demanding landscape of industrial fluid control, the choice of valve technology is paramount to operational efficiency, safety, and longevity. Among the myriad options, 3 piece ball valves stand out for their superior design, exceptional performance, and ease of maintenance. These robust components are engineered to provide reliable shut-off and throttling capabilities across a diverse range of critical applications, from high-pressure chemical processes to sensitive pharmaceutical manufacturing. Their distinctive construction, which separates the valve body into three distinct segments, offers unparalleled flexibility in installation and servicing, making them a preferred choice for engineers and procurement specialists seeking long-term value and operational continuity.
Industry Trends Driving Demand for Advanced Ball Valve Solutions
The industrial sector is currently witnessing several transformative trends that significantly impact valve design and deployment. Increased focus on sustainability, driven by stricter environmental regulations and corporate social responsibility initiatives, demands valves with minimal fugitive emissions and optimized flow characteristics for energy efficiency. Automation and digitalization are also reshaping process control, requiring valves that are compatible with advanced actuator systems and industrial IoT platforms for real-time monitoring and predictive maintenance. Furthermore, the expansion into extreme operating conditions, such as ultra-high pressures, cryogenic temperatures, and highly corrosive media, necessitates the development of valves from specialized alloys and advanced sealing technologies. 3 piece ball valves are uniquely positioned to address these trends, with their modular design allowing for material customization, superior sealing mechanisms, and ease of integration into automated systems.
- Enhanced Safety Protocols: Growing emphasis on preventing leaks and ensuring system integrity.
- Material Innovations: Demand for exotic alloys to withstand aggressive media and extreme temperatures.
- Serviceability and Uptime: Focus on designs that facilitate quick repairs and minimize downtime, a core strength of 3 pc ball valves.
- Automation Integration: Increasing adoption of smart actuators and control systems.
Technical Specifications and Design Principles of 3 PC Ball Valves

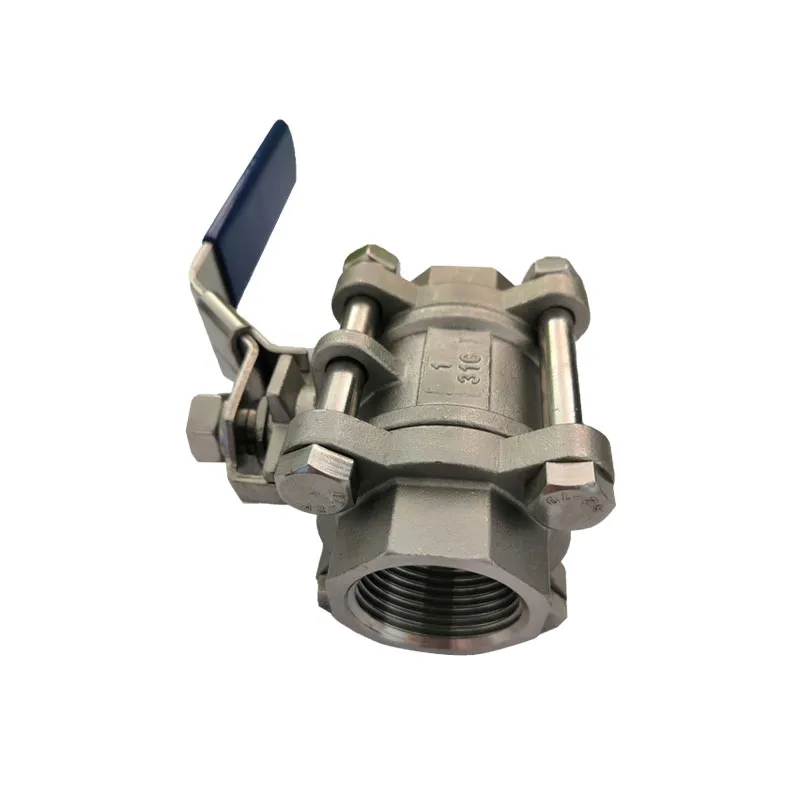

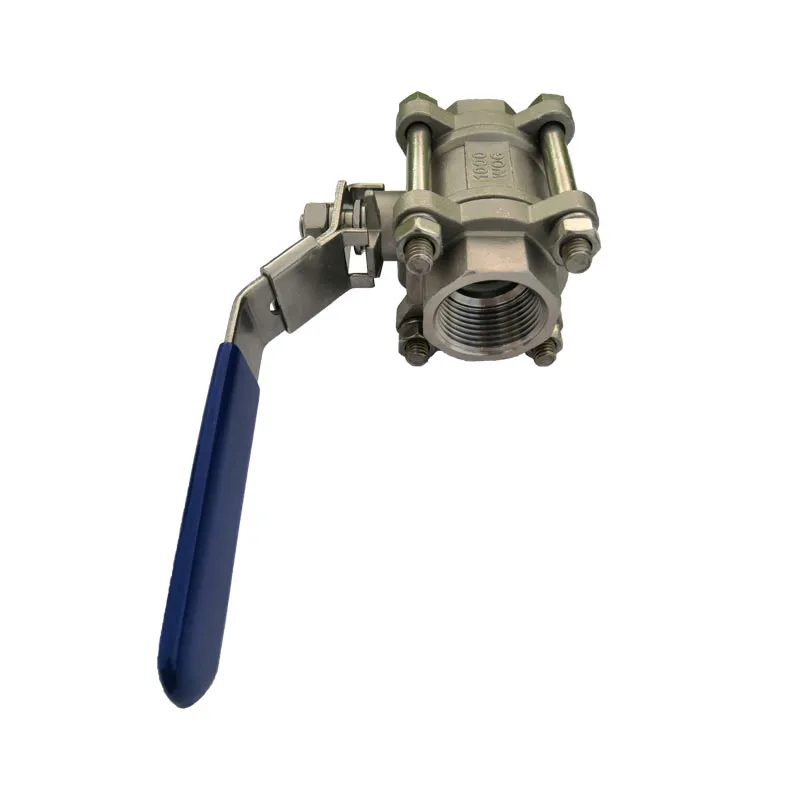

The robust design of a 3 pc ball valve comprises a central body and two end caps, which are typically bolted together. This configuration allows for the entire internal trim – including the ball, seats, and stem – to be easily removed for maintenance or replacement without disturbing the piping connections. This is a critical advantage for systems where line shutdown is costly or complex. The precision engineering of these components ensures a tight seal and reliable operation over extensive service cycles.
Material Selection for Optimal Performance
Material selection is paramount for the longevity and safe operation of 3 piece ball valves. The most common material for demanding applications is stainless steel, particularly for a 3 piece stainless ball valve, due to its excellent corrosion resistance and mechanical strength across a wide range of temperatures. Other materials include carbon steel for general industrial use, and specialized alloys like Hastelloy, Monel, or Inconel for highly corrosive or high-temperature environments.
- Body & End Caps: ASTM A351 CF8M (316 SS), ASTM A216 WCB (Carbon Steel), ASTM A351 CF3M (316L SS), Duplex Stainless Steel (e.g., A890 4A).
- Ball: ASTM A351 CF8M, ASTM A351 CF3M, Tantalum, Titanium (matched with body material for compatibility).
- Seats: PTFE (Virgin, Reinforced), PEEK, Delrin, PCTFE, Metal-to-Metal (for high-temperature/abrasive service).
- Stem: ASTM A276 316, ASTM A276 304, XM-19.
- Seals & Gaskets: Viton, EPDM, Graphite, PTFE.
Key Operational Parameters
The full port design, where the bore diameter matches the pipe's internal diameter, minimizes pressure drop and turbulence, making it ideal for processes requiring maximum flow and minimal energy loss. Reduced port designs, while more compact and economical, introduce a slight restriction to flow.
Manufacturing Process Flow of 3 Piece Ball Valves
The production of high-quality 3 piece ball valves is a meticulously controlled multi-stage process, integrating advanced metallurgy, precision machining, and rigorous quality assurance. This ensures that each valve meets stringent industry standards and delivers reliable performance under critical operating conditions.
Detailed Manufacturing Steps:
1. Material Selection & Sourcing
Raw materials (e.g., stainless steel bars, billets) are sourced from certified suppliers, ensuring compliance with ASTM, EN, and other international material standards. Full traceability of each material batch is maintained.
2. Casting or Forging
Valve bodies and end caps are typically produced via investment casting for intricate shapes or forging for higher strength and reduced porosity. Forging is often preferred for high-pressure and critical applications, enhancing the integrity of the 3 pc ball valve.
3. CNC Machining
Advanced CNC machining centers precisely shape the cast/forged components. Critical tolerances for the ball, seats, and body cavity are maintained to ensure tight shut-off and smooth operation, directly impacting the service life.
4. Surface Treatment & Finishing
Depending on the application, surfaces may undergo polishing, passivation (especially for 3 piece stainless ball valve), or specialized coatings to enhance corrosion resistance and reduce friction.
5. Assembly
Components are meticulously assembled in a clean environment, with particular attention paid to seat alignment, stem packing, and body bolt torquing to ensure structural integrity and leak prevention.
6. Testing & Quality Control
Every valve undergoes hydrostatic pressure testing (body and seat), pneumatic low-pressure air testing, and often fugitive emissions testing. Standards like API 598, ISO 5208, and ANSI B16.34 are rigorously followed to ensure performance and safety.
Key Testing Standards and Service Life
Adherence to international testing standards is non-negotiable for high-performance valves.
- ISO 9001: Certification for quality management systems throughout the manufacturing process.
- API 607/6FA: Fire-safe design and testing, critical for petrochemical and oil & gas applications.
- Fugitive Emissions Testing (ISO 15848-1, API 624): Ensures minimal leakage through the stem packing, vital for environmental compliance and safety.
- CE Marking (PED 2014/68/EU): Compliance for pressure equipment within the European Economic Area.
The expected service life of a 3 piece ball valve can range from 10 to 25 years or more, depending on the application severity, material compatibility, and maintenance regimen. For example, a well-maintained 3 piece stainless ball valve in a non-abrasive, non-corrosive water application will vastly outlast a carbon steel valve in a highly corrosive chemical process without appropriate material selection.
Key Technical Advantages and Performance Benefits
The distinct advantages of 3 piece ball valves stem directly from their innovative design and robust construction, offering significant operational benefits across various industrial applications.
- In-line Maintainability: This is arguably the most significant advantage. By removing the body bolts, the central body section, containing the ball and seats, can be easily swung out for maintenance or replacement while the end connections remain undisturbed in the pipeline. This dramatically reduces downtime and labor costs associated with valve servicing, a critical factor for optimizing operational expenditure.
- Superior Sealing and Leak Prevention: With precision-machined components and advanced seat materials (e.g., reinforced PTFE, PEEK), 3 pc ball valves provide bubble-tight shut-off. Their robust stem packing designs (often featuring live-loaded packing) are engineered to meet stringent fugitive emissions standards, minimizing environmental impact and product loss.
- Exceptional Flow Characteristics: Available in full port designs, these valves offer unrestricted flow paths, resulting in minimal pressure drop and reduced turbulence. This translates into energy savings, as pumps require less power to move fluids through the system, and reduced wear on the valve itself.
- Corrosion Resistance and Material Versatility: The ability to select specific materials for different components allows for optimized corrosion resistance. For aggressive media, a 3 piece stainless ball valve (e.g., 316L SS) with specialized seat materials provides excellent longevity and reliability where other valve types might quickly degrade.
- High Cycle Life: The durable construction and precise internal components contribute to a high cycle life, ensuring reliable operation over thousands of open-close cycles. This is crucial for automated systems requiring frequent valve actuation.
- Adaptability: Their modular design makes them highly adaptable to various end connections, actuation types, and special service requirements, making them a versatile solution for complex process systems.
These combined attributes position 3 piece ball valves as a strategic investment for industries prioritizing efficiency, safety, and long-term cost-effectiveness in fluid handling.
Application Scenarios and Target Industries
The versatility and robust performance of 3 piece ball valves make them indispensable across a broad spectrum of industrial applications and target industries where reliable flow control is critical.
Key Target Industries:
- Petrochemical and Oil & Gas: For handling crude oil, natural gas, refined products, and various chemicals. The fire-safe design and high-pressure capabilities of a 3 pc ball valve are crucial in these hazardous environments. Applications include upstream production, midstream transportation, and downstream refining.
- Chemical Processing: Ideal for managing corrosive acids, alkalis, and solvents. The wide range of available materials, particularly the 3 piece stainless ball valve and exotic alloys, ensures compatibility with aggressive media, minimizing degradation and contamination.
- Pharmaceutical and Biotechnology: Used in sanitary and sterile applications where cleanliness and material purity are paramount. Stainless steel (316L) with high-purity finishes and specific certifications (e.g., FDA compliance for elastomers) are common. They are often chosen for WFI (Water for Injection) systems, reactor vessels, and fermentation processes.
- Food & Beverage: Similar to pharma, requiring hygienic designs, ease of cleaning (CIP/SIP compatibility), and materials approved for food contact. Applications include brewing, dairy processing, and beverage production lines.
- Water Supply & Drainage / Wastewater Treatment: For reliable shut-off in water distribution networks, filtration systems, and sewage treatment plants. Corrosion-resistant materials are essential for handling raw water, treated water, and effluent.
- Power Generation: Used in cooling water systems, fuel lines, and auxiliary services within power plants (conventional, nuclear, and renewable). High-temperature and high-pressure capabilities are often required.
- Mining and Metallurgy: For slurry handling, ore processing, and general utility services where abrasion and robust construction are key considerations.
Typical Application Scenarios:
In a refinery, 3 piece ball valves might be deployed as block valves in fractionation columns, managing the flow of various hydrocarbon streams under high temperature and pressure. In a pharmaceutical plant, they could regulate the flow of purified water or active pharmaceutical ingredients (APIs) in a sterile environment. Their ease of maintenance makes them ideal for critical lines where regular servicing is required without extensive system shutdown. This directly contributes to energy saving by reducing system downtime and enabling quicker restarts.
Vendor Comparison and Customized Solutions
Selecting the right vendor for 3 piece ball valves is a critical decision that impacts system reliability, operational costs, and compliance. While many manufacturers offer these valves, differentiating factors such as quality, engineering expertise, customization capabilities, and after-sales support are paramount.
Key Criteria for Vendor Selection:
Customized Solutions for Unique Challenges:
Beyond standard catalog offerings, many industrial applications require bespoke valve solutions. Reputable manufacturers of 3 piece ball valves excel in providing customization, which can include:
- Specialty Materials: Fabrication in materials like Titanium, Zirconium, or custom alloys for extreme corrosion or temperature resistance.
- Unique End Connections: Custom flange facings, proprietary welding preparations, or non-standard threaded connections to integrate seamlessly into existing infrastructure.
- Enhanced Sealing Configurations: Dual packing, live-loaded packing systems, or specific O-ring materials for ultra-low fugitive emissions or high vacuum service.
- Actuation & Instrumentation: Pre-assembly with specific pneumatic, electric, or hydraulic actuators, positioners, limit switches, and solenoid valves for integrated process control.
- Surface Treatments: Internal coatings (e.g., PTFE lining) for abrasive media or highly viscous fluids, or external marine-grade coatings for offshore environments.
- Cryogenic or High-Temperature Extensions: Extended bonnets for service in extreme temperature ranges to protect stem packing from thermal degradation.
Engaging with a vendor capable of such detailed customization ensures that the 3 pc ball valve perfectly aligns with the specific operational parameters and safety requirements of complex industrial systems.
Real-World Case Studies and Customer Experience
The practical benefits of 3 piece ball valves are best illustrated through their successful deployment in challenging industrial environments, demonstrating tangible improvements in operational efficiency, safety, and cost savings.
Case Study 1: Chemical Plant Process Line Upgrade
A major chemical manufacturing facility faced recurring downtime due to frequent valve seal failures in a highly corrosive hydrochloric acid line. Traditional two-piece valves required complete line breaks for maintenance, resulting in 12-hour shutdowns per incident. By replacing 30 conventional valves with specially configured 3 piece stainless ball valves (316L SS body with PEEK seats and PTFE stem packing), the facility observed a dramatic reduction in unplanned shutdowns. The in-line repairability meant that seat replacements could be completed in under 2 hours, minimizing production loss. Over one year, this upgrade led to an estimated 70% reduction in maintenance-related downtime and a significant improvement in worker safety due to reduced exposure to hazardous chemicals.
Case Study 2: Brewery Fermentation Tank Control
A craft brewery expanded its fermentation capacity and required robust, hygienic valves for managing yeast slurry and product transfer. Standard valves struggled with the viscous nature of the slurry and the stringent cleaning-in-place (CIP) requirements. The implementation of full-port 3 pc ball valves with sanitary clamp ends and polished internal finishes provided excellent flow characteristics, preventing clogging, and ensuring thorough cleaning. The ease of disassembly allowed for regular visual inspection and manual cleaning when necessary, preserving product purity and extending the life of the entire system. Customer feedback highlighted the "unparalleled reliability and ease of sanitization" as key factors in improving production consistency and reducing batch contamination risks.
Case Study 3: Offshore Oil Platform Emergency Shut-off
On a North Sea offshore platform, reliability of emergency shut-off valves is paramount. The platform sought a compact, fire-safe solution for various utility and process lines. Replacing older, heavier valve types with compact, actuated 3 piece ball valves (API 607 certified, Duplex Stainless Steel) provided a lightweight solution with a smaller footprint, crucial for space-constrained platforms. The reduced torque requirements for operation also allowed for smaller, more cost-effective actuators. Regular preventative maintenance, facilitated by the 3-piece design, ensured the valves remained in optimal working condition, ready to respond to any emergency.
Authoritativeness and Trustworthiness: Our Commitment
As a leading provider of industrial valves, our commitment to quality, reliability, and customer satisfaction is built upon a foundation of established certifications, rigorous testing, and dedicated support. We understand that in B2B transactions, trust is earned through consistent performance and transparent operations.
Certifications and Quality Assurance:
- ISO 9001:2015 Certified: Our quality management system adheres to the highest international standards, ensuring consistent product quality from design to delivery for every 3 pc ball valve.
- API 6D, API 607/6FA Compliant: Our products meet the demanding requirements for pipeline valves and fire-safe designs, critical for oil & gas applications.
- PED 2014/68/EU (CE Marked): All pressure equipment supplied into the European market fully complies with the Pressure Equipment Directive.
- Material Traceability: Full material test reports (MTRs) are provided for all major components, ensuring complete traceability back to the melt.
Partner Clients and Industry Experience:
With over [X, e.g., 20] years of dedicated service in the valve manufacturing sector, we have cultivated long-standing partnerships with leading companies in petrochemical, pharmaceutical, energy, and water treatment industries globally. Our expertise lies in understanding specific operational challenges and delivering tailored fluid control solutions, including specialized 3 piece ball valves for critical applications.
Frequently Asked Questions (FAQ):
Q: What is the primary benefit of a 3-piece ball valve over a 2-piece design?
A: The main advantage is in-line maintainability. The central body can be removed for servicing without disturbing the pipeline connections, drastically reducing downtime and maintenance costs. This is not possible with 2-piece designs which require removal of the entire valve from the line.
Q: Can 3 piece ball valves be used for throttling applications?
A: While primarily designed for on/off service, 3 pc ball valves can be used for limited throttling, especially with V-port balls or specialized trim. However, for continuous, precise throttling, globe or specialized control valves are generally preferred to avoid seat wear.
Q: What is the typical lead time for custom 3 piece stainless ball valves?
A: Standard configurations typically have a lead time of 4-6 weeks. However, customized solutions involving special materials, testing, or complex actuation can extend lead times to 8-16 weeks. We work closely with clients to define realistic timelines based on project specifics.
Q: What is your warranty policy?
A: We offer a standard 12-month warranty from installation or 18 months from shipment (whichever comes first) against manufacturing defects for all our 3 piece ball valves. Extended warranty options are available for specific projects and applications.
Lead Time & Fulfillment:
Our streamlined manufacturing processes and robust supply chain enable competitive lead times. For standard configurations, we typically ensure shipment within 4-6 weeks. Expedited options are available for urgent requirements, with precise fulfillment details provided upon order confirmation. We maintain a strong inventory of critical components to facilitate rapid assembly and delivery.
Warranty & Customer Support:
Every 3 piece ball valve we supply is backed by a comprehensive warranty, ensuring peace of mind for our clients. Our dedicated after-sales support team provides technical assistance, troubleshooting, spare parts, and on-site service when required. We are committed to fostering long-term relationships by ensuring the continuous, reliable operation of our valves throughout their service life.
Conclusion: The Enduring Value of 3 Piece Ball Valves
In conclusion, 3 piece ball valves represent a pinnacle of industrial valve engineering, offering a compelling blend of design sophistication, operational reliability, and economic advantages. Their unique modular construction facilitates unparalleled ease of maintenance, significantly reducing downtime and total cost of ownership in demanding applications. From the most corrosive chemical lines, where a 3 piece stainless ball valve provides crucial protection, to critical process control in pharmaceutical and petrochemical plants, these valves consistently deliver superior performance. As industries continue to evolve towards greater automation, stricter environmental compliance, and enhanced safety protocols, the inherent adaptability and robust design of 3 pc ball valves ensure their continued relevance as a preferred solution for complex fluid control challenges globally. Choosing these advanced valves is not merely a purchase; it is a strategic investment in the efficiency, safety, and longevity of your industrial operations.
References
- American Petroleum Institute. (2014). API Standard 607: Fire Test for Soft-Seated Quarter-Turn Valves (7th ed.). Washington, D.C.: API Publishing.
- International Organization for Standardization. (2017). ISO 9001:2015: Quality management systems – Requirements. Geneva: ISO.
- International Organization for Standardization. (2015). ISO 15848-1: Industrial valves – Measurement, test and qualification procedures for fugitive emissions – Part 1: Classification system and qualification procedures for type testing of valves. Geneva: ISO.
- European Parliament and Council. (2014). Directive 2014/68/EU on pressure equipment (PED). Official Journal of the European Union, L 189, 164-259.
- Valves, Pipes, and Fittings Handbook. (2020). Industrial Flow Control Technologies. McGraw-Hill Professional.
