An Insider’s Take on the 3-Way Ball Valve (L-Port): What Matters in Real Plants
If you’ve ever tried to simplify a piping loop without adding a mess of tees and actuators, you’ve probably looked at an 3 way valve l type. The version I keep seeing on compact skids—the one with a direct mounting pad—has quietly become a favorite for engineers who care about footprint, uptime, and, to be honest, fewer points of failure.
Why L-Port, Not T-Port?
Quick refresher: the L-port routes flow between two of three ports at a time—ideal for selection, diverting, and simple bypass. The T-port mixes or distributes. For utilities, oil blending, and CIP bypass, the 3 way valve l type usually wins because it’s deterministic and—surprisingly—easier to interlock with one actuator.

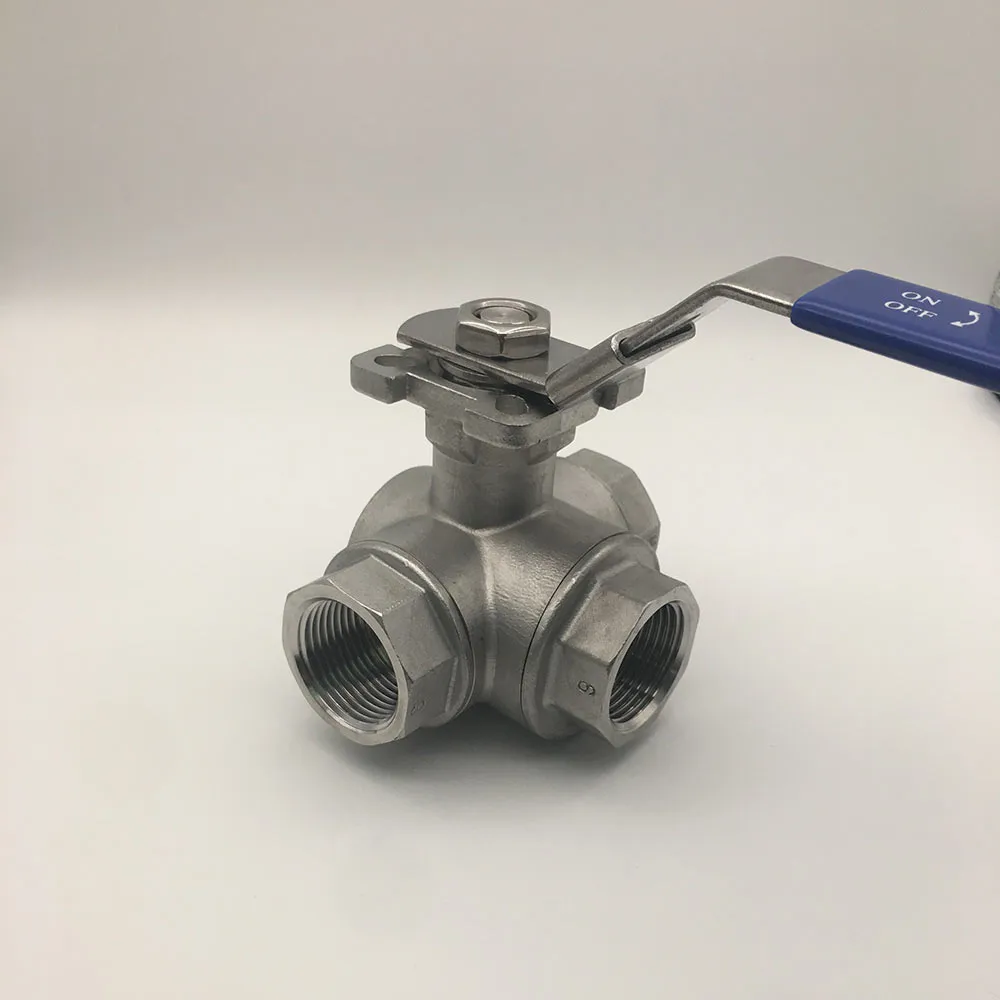

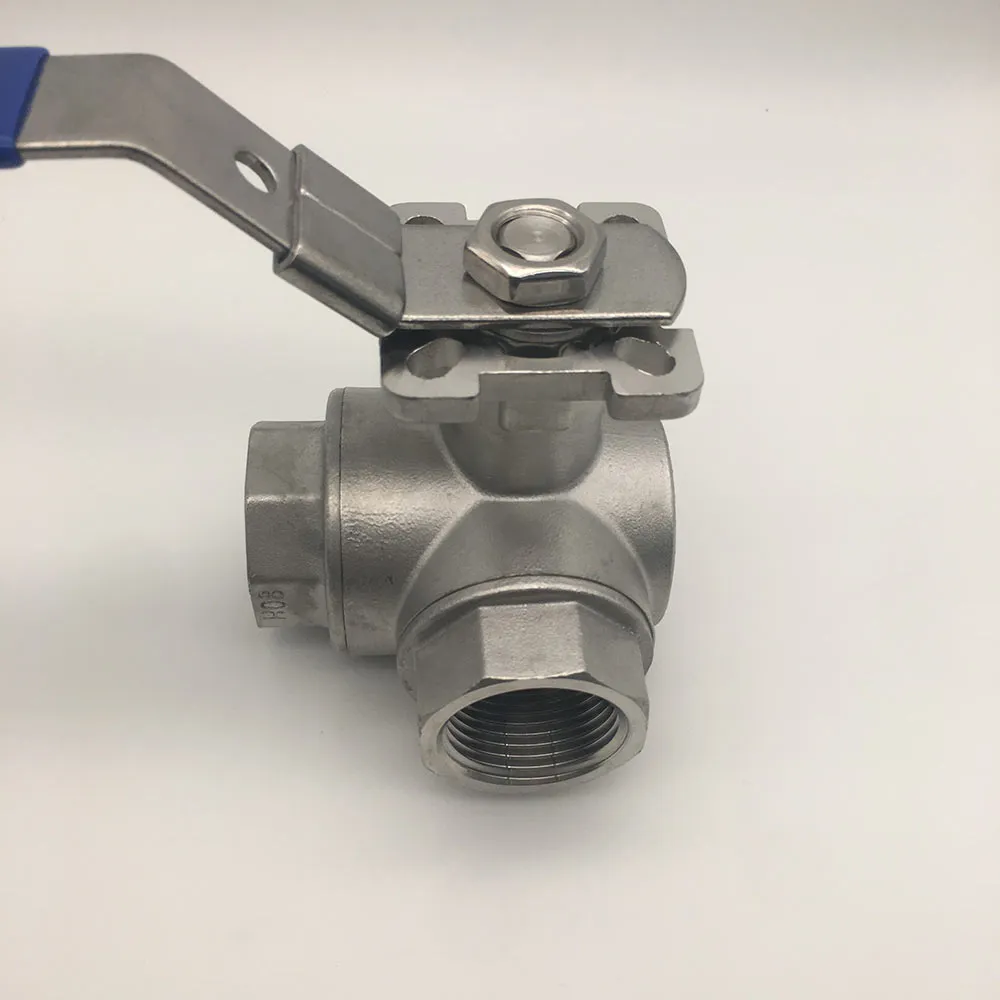

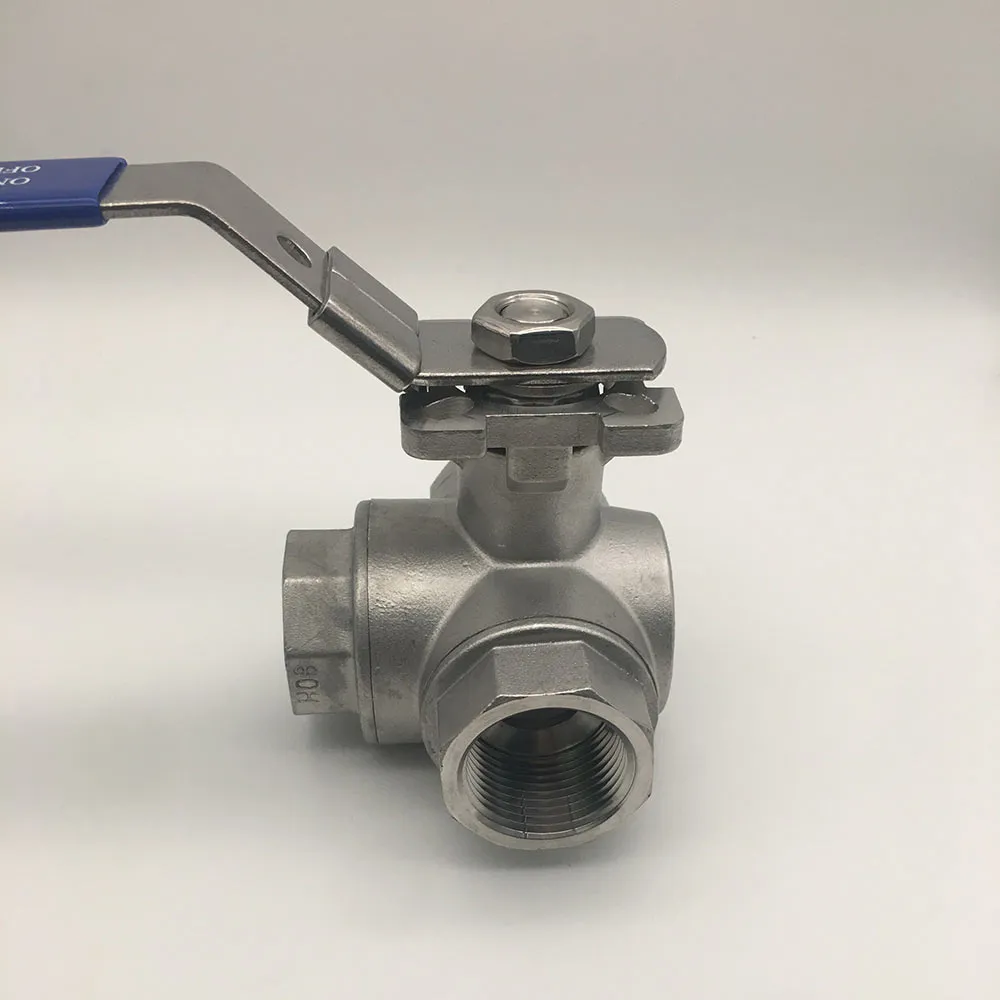

Product Snapshot: 3-Way Ball Valve With Direct Mounting Pad
Origin: Liupangzhuang Village, Nanchentun Town, Yunhe District, Cangzhou, Hebei, China. Body in stainless steel or carbon steel; tight sealing, smooth operation. Many customers say the bubble-tight shutoff saves them more than the actuator ever did. Actually, that checks out in leak audits.
| Parameter | Typical Spec (≈, real-world use may vary) |
|---|---|
| Porting | L-port (divert/select) |
| Size Range | DN15–DN100 (1/2"–4") |
| Pressure Rating | PN16–PN63 / Class 150–300 |
| Temp Window | -20°C to 200°C (seats dictate) |
| Body/Trim | CF8/CF8M or WCB; 316/304 ball & stem |
| Seats/Seals | PTFE/RPTFE; optional PEEK/metal for high temp |
| Mounting | ISO 5211 direct mount pad |
| End Connections | Flanged, threaded, or tri-clamp |
| Leakage | Bubble-tight (soft seat), FCI 70-2 Class VI |
Process, QA, and Test Data (The Stuff Auditors Ask For)
- Materials: certified SS or CS with MTR traceability; elastomers to FDA/EC where specified.
- Machining: precision ball-seat concentricity; anti-blowout stem design.
- Testing: shell at 1.5× rated pressure; seat at 1.1× (API 598 / EN 12266-1 / ISO 5208). Recent lot: 0 visible leakage, torque within spec.
- Service life: ≈100,000 cycles with RPTFE seats under clean media; harsher media, reduce by 20–40%.
- Certifications: ISO 9001 QMS; CE on request; ATEX documentation for zones—case-by-case.
Where It Shines
Media: water, oil, gas, steam, and selected corrosives. Industries: chemical blending, HVAC loops, food & beverage CIP, compact oil skids, pharma utilities.
Mini case notes—honest and practical: a beverage plant swapped three on/off valves for one 3 way valve l type on a syrup bypass. Fewer leak points, faster washdowns. Another team in a midstream terminal uses the L-port for line selection; operators like the clear position logic—no guesswork.
Vendor Snapshot and Customization
From Cangzhou, Hebei, the maker offers nimble customization—seat upgrades (PEEK), cavity fillers for hygienic duty, locking handles, and full actuator kits. Direct mount (ISO 5211) cuts stack height and, frankly, looks cleaner in a panel photo.
| Criteria | Houde Valve | Global Brand X | Regional Supplier Y |
|---|---|---|---|
| Lead Time | ≈2–4 weeks | 4–8 weeks | stock-dependent |
| Customization | Broad, quick | Limited | Varies |
| Documentation | MTRs, ISO, test certs | Extensive | Basic |
| Cost | Competitive | Premium | Low-to-mid |
Trends I’m Watching
- More ISO 5211 direct-mount actuators with smart positioners (HART/Modbus).
- Seat tech moving to PEEK/TFM for hotter, harsher services.
- Spec-driven audits: API 598, EN 12266-1, and clear torque curves are now baseline.
Bottom line: for clean divert/select logic, the 3 way valve l type with a direct mounting pad is a tidy, durable choice—fewer fittings, fewer headaches.
