Introduction to High-Performance Miniature Ball Valves

In the intricate landscape of modern industrial fluid control, precision, reliability, and compact design are paramount. Miniature ball valves stand out as critical components, offering robust performance in highly constrained spaces. These compact yet powerful devices are engineered to manage the flow of liquids and gases with exceptional efficiency and unparalleled shut-off capabilities. From advanced petrochemical processes to sensitive medical systems and complex HVAC circuits, the demand for sophisticated flow control solutions continues to drive innovation in this specialized valve segment. This article delves into the technical intricacies, application versatility, and strategic advantages of these indispensable industrial workhorses, providing insights for engineers and procurement professionals seeking optimal fluid management solutions.

Industry Trends and Market Dynamics for Miniature Ball Valves

The market for miniature ball valves is experiencing steady growth, propelled by several key industry trends. Miniaturization across various sectors, from instrumentation to automation, necessitates smaller, more efficient components. The increasing complexity of industrial processes demands precise and reliable flow control in increasingly confined spaces. This trend significantly boosts the adoption of compact solutions like the mini ball valve.

Furthermore, the escalating demand for advanced materials, particularly stainless steel mini ball valve options, reflects a growing emphasis on corrosion resistance, longevity, and performance in harsh operating environments. According to recent market analysis, the global industrial valves market is projected to reach over $80 billion by 2027, with specialty valves, including miniature variants, contributing substantially to this growth due to their critical role in emerging applications. Innovations in manufacturing techniques, such as advanced CNC machining and additive manufacturing, are also enabling the production of more intricate and higher-performance miniature valve designs, pushing the boundaries of what is possible in compact fluid control. Environmental regulations and the drive for energy efficiency also play a role, as precise flow control often translates to reduced waste and optimized system performance.

Technical Specifications and Design Principles

The fundamental design of a mini ball valve comprises a body, a rotating ball, seats, a stem, and a handle or actuator. The ball, with a bore through its center, rotates 90 degrees to either align the bore with the flow path (open) or perpendicular to it (closed), providing quick and effective shut-off.

Key Components and Materials:

• Body: Commonly constructed from Brass, 304 Stainless Steel, or 316 Stainless Steel. Brass offers excellent machinability and cost-effectiveness, while 304 and 316 stainless steel mini ball valve options provide superior corrosion resistance and strength, particularly crucial in chemical processing and high-purity applications.
• Ball: Typically chrome-plated brass or stainless steel, polished to minimize friction and ensure a tight seal.
• Seats: Made from PTFE (Polytetrafluoroethylene), which provides low friction, excellent chemical resistance, and a tight seal across a broad temperature range. Other materials like PEEK or Delrin might be used for higher temperature or pressure applications.
• Stem: Usually 304 or 316 Stainless Steel, designed to connect the ball to the handle, incorporating an O-ring or packing for leak prevention.
• End Connections: Vary widely, including NPT (National Pipe Taper), BSPT (British Standard Pipe Taper), compression fittings, flare, and hose barb, to accommodate diverse piping requirements.

Product Specification Table: Mini Ball Valve M/M

Figure 1: Typical multi-port configuration for miniature ball valves.

Manufacturing Process of Miniature Ball Valves

The production of high-quality miniature ball valves is a meticulous process, demanding precision engineering and rigorous quality control at every stage. The journey from raw material to a finished, reliable valve involves several critical steps:

1. Material Selection and Preparation: This initial phase involves selecting appropriate raw materials, such as specific grades of brass (e.g., CW617N) or stainless steel (e.g., AISI 304, AISI 316). These materials are chosen based on the valve's intended application, considering factors like corrosion resistance, pressure, and temperature. Material traceability is paramount, ensuring each batch meets stringent specifications.
2. Forming the Valve Body:
   • Forging: For brass and stainless steel bodies, forging is the preferred method. This process involves heating metal billets and shaping them under immense pressure. Forging produces a dense, non-porous body with superior grain structure, significantly enhancing strength, durability, and resistance to leaks compared to casting. This contributes directly to a longer service life and higher pressure ratings for the finished mini ball valve.
   • Casting: While less common for high-pressure miniature valves, casting is used for larger or lower-pressure components, involving pouring molten metal into molds.
3. CNC Machining: Following forging, the valve bodies, balls, and stems undergo precise Computer Numerical Control (CNC) machining. This highly automated process ensures extremely tight tolerances, critical for the valve's sealing performance and smooth operation. The ball's surface finish, in particular, must be mirror-smooth to achieve bubble-tight shut-off and minimize wear on the PTFE seats.
4. Surface Treatment and Cleaning: For stainless steel mini ball valve components, passivation is a crucial step. This chemical process removes free iron from the surface, enhancing the material's inherent corrosion resistance by forming a protective oxide layer. All components are thoroughly cleaned to remove machining oils, debris, and contaminants, especially for applications requiring high purity.
5. Assembly: Skilled technicians meticulously assemble the valve components. This includes inserting the PTFE seats, the ball, the stem (often with anti-blowout design), and the packing or O-rings. The handle or actuator is then attached. Proper torque and assembly sequence are vital to ensure optimal performance and prevent premature wear.
6. Testing and Quality Control: This is a non-negotiable stage to ensure every miniature ball valve meets demanding performance criteria.
   • Hydrostatic Shell Test: The valve body is subjected to pressure significantly higher than its maximum rated working pressure to test the integrity of the casting/forging.
   • Seat Leakage Test: Air or water at specified pressures (e.g., API 598, ISO 5208) is introduced to check for leakage past the valve seats and stem packing. This ensures bubble-tight shut-off.
   • Functional Testing: Valves are cycled multiple times to verify smooth operation, proper stem torque, and handle alignment.
   • Dimensional Inspection: Critical dimensions are verified against engineering drawings.
   Compliance with international standards such as ISO (International Organization for Standardization) and ANSI (American National Standards Institute) is strictly adhered to, guaranteeing product reliability and interoperability. The emphasis on robust manufacturing processes directly contributes to superior service life, making these valves a cost-effective choice through energy saving by preventing leaks and reducing maintenance.

Application Scenarios and Target Industries

The versatility and compact nature of miniature ball valves make them indispensable across a broad spectrum of industries and applications where space is limited and precise flow control is required.

Key Target Industries:

• Petrochemical and Chemical Processing: Used extensively in sampling lines, analyzer systems, and small bore instrument lines where robust construction (often stainless steel mini ball valve) and resistance to corrosive media are critical. Their quick shut-off capability is vital for safety and process integrity.
• Metallurgy: Employed in gas sampling and control systems within furnaces or refining processes, ensuring precise management of inert gases or fuel mixtures.
• Water Supply & Drainage: Ideal for domestic water appliances, small-scale filtration units, irrigation systems, and pilot lines in larger water treatment plants. Their compact size allows for easy integration into residential and commercial plumbing.
• HVAC Systems: Found in heating, ventilation, and air conditioning systems for controlling refrigerant lines, hydronic circuits, and drain lines, where their reliable operation ensures system efficiency.
• Medical and Pharmaceutical: In high-purity medical gas systems, laboratory equipment, and biopharmaceutical processes, precision and material purity (often specialized stainless steel mini ball valve) are paramount.
• Semiconductor Manufacturing: Critical for ultra-high-purity gas delivery systems, where even the smallest contamination can be detrimental to product quality.
• Automotive and Heavy Machinery: Used in hydraulic and pneumatic control circuits, fuel lines, and lubrication systems where durability and resistance to vibration are essential.
• Food and Beverage: In small-scale processing lines, cleaning-in-place (CIP) systems, and dispensing equipment where hygienic design and corrosion resistance are necessary.

In these diverse scenarios, the advantages of a mini ball valve are consistently demonstrated through energy saving due to leak prevention and efficient flow paths, and excellent corrosion resistance when fabricated from appropriate materials like 316 stainless steel.

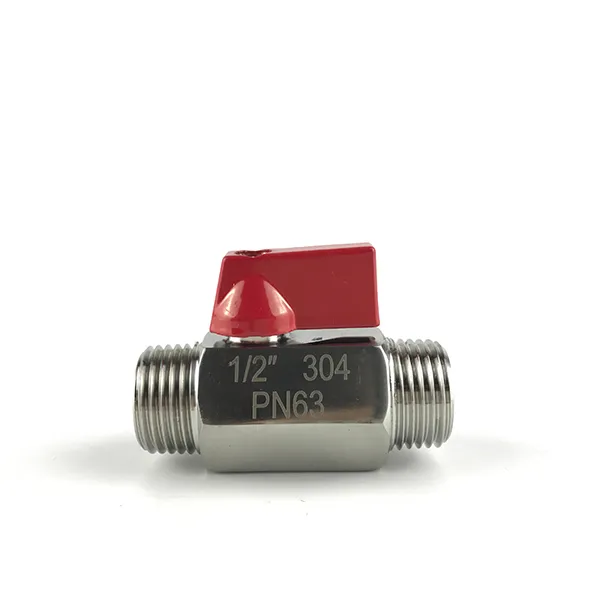

Figure 2: A robust mini ball valve suitable for industrial applications.

Technical Advantages of Miniature Ball Valves

The proliferation of miniature ball valves across critical industrial applications is a testament to their inherent technical advantages. These compact components offer a compelling blend of performance, reliability, and operational efficiency.

• Compact Footprint: Their primary advantage is their diminutive size, enabling installation in exceptionally tight spaces where conventional valves would be impractical. This is crucial for miniaturized systems, complex manifold designs, and instrument panels.
• Quick Quarter-Turn Operation: The 90-degree turn from fully open to fully closed provides rapid fluid control. This quick action is beneficial for emergency shut-off, process automation, and scenarios requiring immediate response.
• Excellent Shut-Off Capabilities: With well-designed PTFE seats, these valves offer bubble-tight sealing, preventing leakage and ensuring precise isolation of media. This minimizes fluid loss, enhances safety, and contributes to significant energy saving in systems by preventing energy wastage through leaks.
• Durability and Long Service Life: Constructed from robust materials like forged brass or stainless steel mini ball valve options, coupled with precision machining, these valves are built for longevity. They withstand high operating cycles, pressure variations, and temperature extremes, reducing the frequency of maintenance and replacement.
• Versatility in Materials and End Connections: Available in a variety of materials (brass, SS304, SS316) and a wide array of end connections (NPT, BSPT, compression, barb), they can be tailored to suit almost any media type, pressure rating, and piping configuration. The stainless steel mini ball valve, in particular, offers superior corrosion resistance against aggressive chemicals.
• Low-Pressure Drop: Full-port designs offer an unrestricted flow path, resulting in minimal pressure drop across the valve. This optimizes system efficiency and reduces pump energy consumption.
• Cost-Effectiveness in Small Line Applications: While precision manufacturing demands investment, their long operational life, minimal maintenance requirements, and contribution to system efficiency make them a highly cost-effective choice for small bore and instrument line applications over their lifecycle.

Vendor Comparison and Selection Criteria

Selecting the right supplier for miniature ball valves is critical for ensuring system reliability and operational efficiency. B2B decision-makers should evaluate vendors based on a comprehensive set of criteria beyond just the initial purchase price.

Key Evaluation Factors:

• Quality Certifications: Look for ISO 9001 certified manufacturers, indicating a robust quality management system. Compliance with specific industry standards (e.g., PED for pressure equipment, CE for European markets) is also crucial.
• Material Traceability: Ensure the vendor provides full material traceability, especially for stainless steel mini ball valve products, to guarantee authenticity and performance characteristics.
• Manufacturing Capabilities: Assess whether the vendor utilizes advanced manufacturing techniques like precision CNC machining and rigorous testing protocols (e.g., 100% factory testing for leakage).
• Customization Options: The ability to provide customized solutions for specific applications, including special materials, end connections, or actuation, can be a significant advantage.
• Lead Time and Supply Chain Reliability: Evaluate the vendor's lead times, stock availability, and ability to fulfill orders consistently, particularly for large or recurring requirements.
• Technical Support and After-Sales Service: Access to expert technical assistance, spare parts, and warranty commitments indicates a trustworthy partner.
• Reputation and Experience: A vendor with a proven track record, positive customer feedback, and years of experience in the industrial valve market inspires confidence.

Comparative Analysis: Standard vs. Premium Miniature Ball Valves

Customized Solutions and Design Flexibility

While standard miniature ball valves cater to a wide range of applications, many industrial systems demand highly specific configurations. Leading manufacturers offer extensive customization capabilities to meet unique operational challenges. This design flexibility ensures that even the most niche requirements can be addressed with an optimized mini ball valve solution.

Areas of Customization:

• Special Materials: Beyond standard brass and 316 stainless steel mini ball valve options, custom requests might include exotic alloys like Hastelloy, Monel, or Duplex Stainless Steel for extreme corrosion resistance, high temperatures, or specific chemical compatibility.
• Unique End Connections: While NPT and BSPT are common, specialized connections such as weld ends, specific compression fittings, flanges for small bore, or custom quick-connect interfaces can be engineered.
• Actuation Options: Manual lever handles are standard, but customized valves can be supplied with pneumatic or electric actuators for automated remote control, often with position indicators and feedback mechanisms.
• High-Pressure/High-Temperature Designs: Modifying body wall thickness, seat materials (e.g., PEEK, metal seats), and stem packing can enhance performance under more extreme operating conditions.
• Flow Configuration: Multi-port designs (3-way, 4-way) with specific flow paths can be customized for complex diverting or mixing applications within a compact envelope.
• Surface Finishes: For ultra-high purity or sanitary applications, specialized internal surface finishes (e.g., electropolishing) can be applied to stainless steel mini ball valve components to prevent media adhesion and bacterial growth.

Through collaborative design processes, engineers can work with manufacturers to develop bespoke miniature ball valves that perfectly integrate into complex systems, optimizing performance and reducing the need for cumbersome adapters or compromises.

Application Case Studies

Real-world applications demonstrate the tangible benefits and versatility of miniature ball valves in demanding industrial settings.

Case Study 1: High-Purity Gas Delivery in Semiconductor Manufacturing

A leading semiconductor fabrication plant required precise and contamination-free gas flow control within its ultra-high-purity (UHP) gas delivery systems. The challenge was to integrate numerous control points into a highly compact manifold without compromising purity or reliability. Houde Valve supplied custom-designed stainless steel mini ball valve units with specialized electropolished internal surfaces and PEEK seats. These miniature ball valves offered zero-dead-volume design and guaranteed leak-tight shut-off, preventing atmospheric contamination and ensuring the integrity of sensitive process gases. The compact footprint enabled higher density manifold designs, optimizing valuable cleanroom space and contributing to the overall energy saving of the facility by minimizing gas waste.

Case Study 2: Chemical Dosing Systems in Water Treatment

An industrial wastewater treatment facility needed to accurately dose various corrosive chemicals into their treatment tanks. Space limitations around the dosing pumps necessitated small, yet highly chemical-resistant valves. The solution involved utilizing compact 316 stainless steel mini ball valve units with chemical-resistant PTFE seats. These valves provided the necessary corrosion resistance for acids and alkalis, coupled with reliable quarter-turn operation for precise control of dosing volumes. Their durability significantly reduced maintenance overhead compared to previous valve types, contributing to cost efficiency and reliable operation.

Case Study 3: Hydraulic Control in Mobile Construction Equipment

A manufacturer of heavy construction machinery required robust and compact valves for controlling auxiliary hydraulic functions in their excavators. The valves needed to withstand high pressures, significant vibration, and extreme temperature fluctuations. Forged brass mini ball valve units with specialized high-pressure ratings and durable stem packing were integrated into the hydraulic control blocks. These miniature ball valves proved resilient against the harsh operating conditions, providing reliable flow diversion and shut-off for various hydraulic circuits, enhancing the equipment's functionality and operator control, while maintaining a compact design.

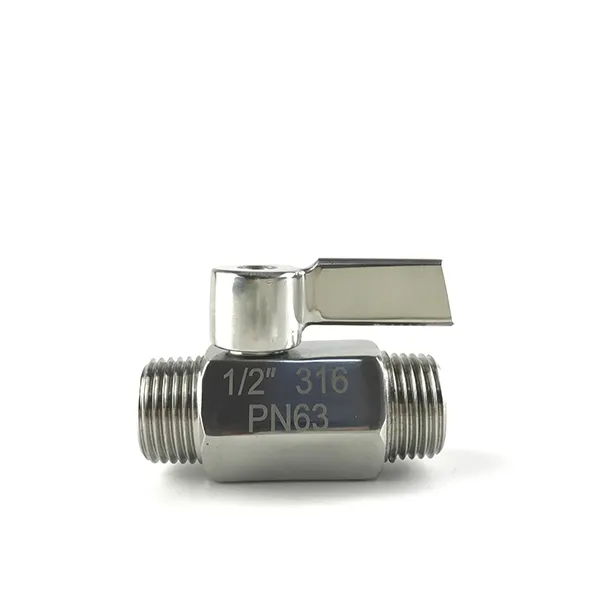

Figure 3: A compact stainless steel mini ball valve in a manifold assembly.

Commitment to Trustworthiness and Customer Support

Building and maintaining trust with B2B clients is paramount. At Houde Valve, we are dedicated to transparency, quality assurance, and comprehensive customer support, ensuring peace of mind for all our partners.

Certifications and Authoritativeness:

• ISO 9001:2015 Certified: Our quality management system is certified to ISO 9001, affirming our commitment to consistent product quality and customer satisfaction.
• CE and PED Compliance: Many of our products, including relevant miniature ball valves, comply with CE marking requirements and the Pressure Equipment Directive (PED 2014/68/EU), allowing for seamless integration into European markets.
• Material Certificates: We provide full material traceability and material test reports (MTRs) upon request, ensuring the integrity and compliance of our raw materials, especially for stainless steel mini ball valve products.
• Years of Service: With extensive experience in industrial valve manufacturing, Houde Valve has been a trusted partner to numerous leading companies across various industries globally.

Warranty and After-Sales Support:

• Warranty Commitment: All Houde Valve products are backed by a standard 12-month warranty from the date of installation or 18 months from shipment, whichever comes first, against manufacturing defects.
• Lead Time and Fulfillment: We maintain a robust inventory of standard mini ball valve products to ensure prompt delivery. Typical lead times for in-stock items are 3-5 business days, while custom orders may range from 4-8 weeks, depending on complexity and volume. Expedited shipping options are available.
• Customer Support: Our dedicated team of technical experts and customer service representatives is available to provide pre-sales consultation, installation guidance, troubleshooting, and spare parts support. We are committed to responding to inquiries within 24 hours.

Frequently Asked Questions (FAQ)

Q1: What is the primary advantage of a mini ball valve over a standard ball valve?

A1: The primary advantage is its compact size, allowing for installation in confined spaces. They offer the same reliable quarter-turn operation and tight shut-off as larger ball valves but in a significantly smaller footprint, ideal for instrumentation, sampling, and small bore lines.

Q2: What materials are commonly available for miniature ball valves, and which is best for corrosive media?

A2: Common materials include brass (for general water/air) and stainless steel (SS304, SS316). For corrosive media, a stainless steel mini ball valve (especially SS316) is highly recommended due to its superior resistance to a wide range of chemicals. For extremely aggressive chemicals, specialized alloys may be required.

Q3: What are the typical pressure and temperature ratings for these valves?

A3: Pressure ratings can range from 600 PSI for brass models up to 2000 PSI or more for stainless steel versions. Temperature ranges with standard PTFE seats are typically from -20°C to 180°C (-4°F to 356°F). These ratings can vary based on specific design and sealing materials.

Q4: How do I select the correct miniature ball valves for my specific application?

A4: Consider the fluid type (gas, liquid, corrosive properties), operating pressure and temperature, required flow rate and connection size, end connection type (NPT, BSPT, compression), and desired material of construction (e.g., brass or stainless steel mini ball valve). Consulting with a technical sales engineer is recommended for complex applications.

Q5: Are miniature ball valves suitable for throttling or flow regulation?

A5: While a ball valve is primarily designed for on/off service, a full-port mini ball valve can be used for some throttling, though repeated partial operation can cause accelerated wear on the seats. For precise and continuous flow regulation, globe valves or needle valves are generally more suitable.

Conclusion

Miniature ball valves represent a cornerstone of modern industrial fluid control, delivering precise, reliable, and space-efficient solutions across a multitude of demanding applications. Their robust construction, advanced material options, and rigorous manufacturing processes ensure long-term performance and contribute significantly to operational efficiency and safety. As industries continue to trend towards miniaturization and enhanced performance, the role of high-quality mini ball valve components, particularly those offered in resilient materials like stainless steel mini ball valve, will only continue to expand. Partnering with experienced manufacturers dedicated to quality, customization, and comprehensive support is crucial for optimizing fluid management systems and achieving long-term success.

References

1. ISO. (2017). ISO 5208:2015 Industrial valves - Pressure testing of metallic valves. International Organization for Standardization.
2. American Petroleum Institute. (2019). API Standard 598: Valve Inspection and Testing. American Petroleum Institute.
3. NACE International. (2018). NACE MR0175/ISO 15156: Petroleum and natural gas industries—Materials for use in H2S-containing environments in oil and gas production. NACE International.
4. Valve World Magazine. (2023). Latest Trends in Industrial Valve Technology. KCI Publishing B.V.
5. European Parliament and Council. (2014). Directive 2014/68/EU on pressure equipment (PED). Official Journal of the European Union.
