2 PC Spring Vertical Check Valve: shop-floor notes, specs, and what actually matters

A few weeks ago in Yunhe District, Cangzhou, I stood beside a test bench hearing the soft tick of a cracking spring. That was the moment I was reminded why a spring check valve still earns its keep in plants from HVAC rooms to chemical skids: it opens only when it should, closes when it must, and doesn’t beg for attention in between.

What this model is—and why engineers like it

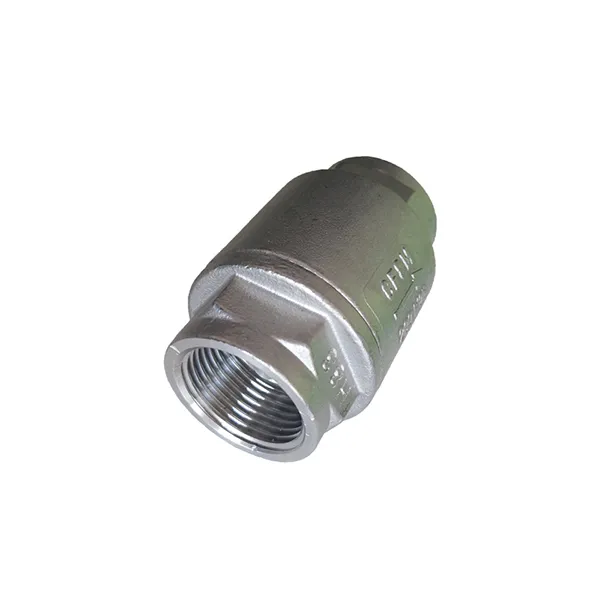

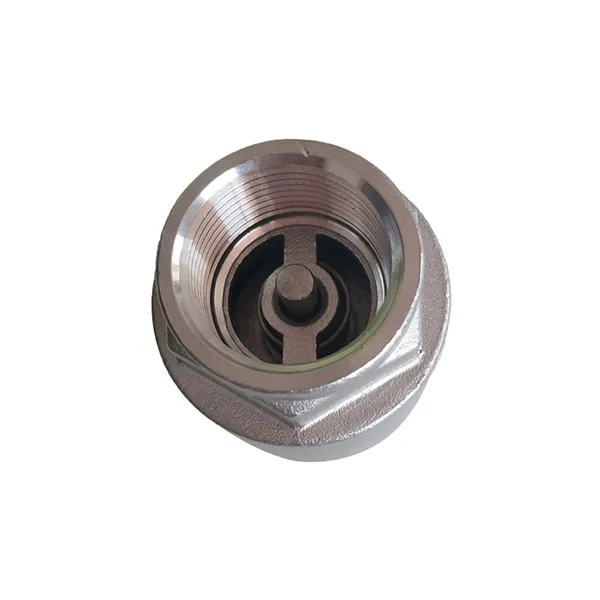

This is the 2 PC Spring Vertical Check Valve from Houde Valve—born in Liupangzhuang Village, Nanchentun Town, Cangzhou. Materials? Stainless steel, bronze, or alloy steel. In practice, that means 316/CF8M for aggressive media, bronze for seawater-ish duty, and alloy steel when temps creep up. The internal flow channel is cleanly profiled; you get low opening pressure and small flow resistance, which—surprisingly to some—shows up on pump energy bills.

Quick applications

Vertical lines and condensate returns where backflow must be stopped reliably.
Clean water, compressed air, light chemicals, steam traces (check metallurgy), and marine bilge lines.
OEM skids where compact, low-crack valves save space and NPSH headaches.

Specification snapshot

Product	2 PC Spring Vertical Check Valve (spring check valve)
Sizes	DN15–DN100 (½"–4") ≈; larger on request
Materials	CF8M/316 SS, Bronze (e.g., C95800), Alloy Steel (A105 + ENP) — selection by media/temperature
Pressure class	PN16–PN40 or Class 150/300 (real-world use may vary with temp)
Temperature range	-20 to 220°C for SS; bronze and alloy steel per datasheet
Ends	Threaded NPT/BSP; Socket/Butt weld optional
Cracking pressure	≈ 0.02–0.05 MPa (custom springs available)
Standards	ASME B16.34, API 598 / ISO 5208 seat tests, EN 12266-1

How it’s built and tested (shop-floor view)

Methods include precision investment casting for bodies, CNC finish machining, and spring selection in 316 or 17-7PH. Seat surfaces are lapped; typical finish ≈ Ra 0.8–1.6 μm. Every unit is hydro-tested at 1.5× rated pressure and seat-tested per API 598 or ISO 5208. We saw sample data: DN50 stainless unit passed 1.5× shell at 3.75 MPa and zero visible seat leakage at 0.6 MPa air—well within Rate A.

Service life? In clean water, expect 5–10 years; in gritty process lines, do yourself a favor and add strainers. Many customers say noise drops after swapping swing checks for this spring check valve, which matches what we heard on the bench—less chatter when flow decays.

Customization and documentation

Tailored cracking pressures; higher for vertical-down lines.
Material upgrades: NACE MR0175/ISO 15156 compliance for sour service.
End connections mixed per skid layout; laser-etched traceability.
Certs: ISO 9001, material test reports (3.1), PED 2014/68/EU on request.

Vendor comparison (indicative)

Factor	Houde Valve	Competitor A	Competitor B
Lead time	≈ 2–4 weeks	4–6 weeks	Stock-dependent
Cracking pressure options	Wide (custom springs)	Limited	Moderate
Testing	API 598 / ISO 5208 standard	API 598	ISO 5208
Documentation	MTR 3.1, hydro/seat charts	Basic CoC	CoC + limited data

Mini case notes

Food plant (CIP return line, 80°C): replacing swing checks with spring check valve units cut pump cycling and showed ~12% energy savings after four weeks. Offshore service (brackish water): bronze-body units survived two monsoon seasons with only spring inspection—no sticking reported.

Buying pointers

Match cracking pressure to pump curve; too high invites cavitation, too low risks flutter.
Verify test certificates and seat leakage rate (aim for Rate A if you can).
Mind orientation: this design excels in vertical up-flow; ask for tuning in horizontal lines.

Origin: Liupangzhuang Village, Nanchentun Town, Yunhe District, Cangzhou, Hebei, China.
