Stainless Steel Y Type Strainer: What’s New, What Matters, and What Works in the Field

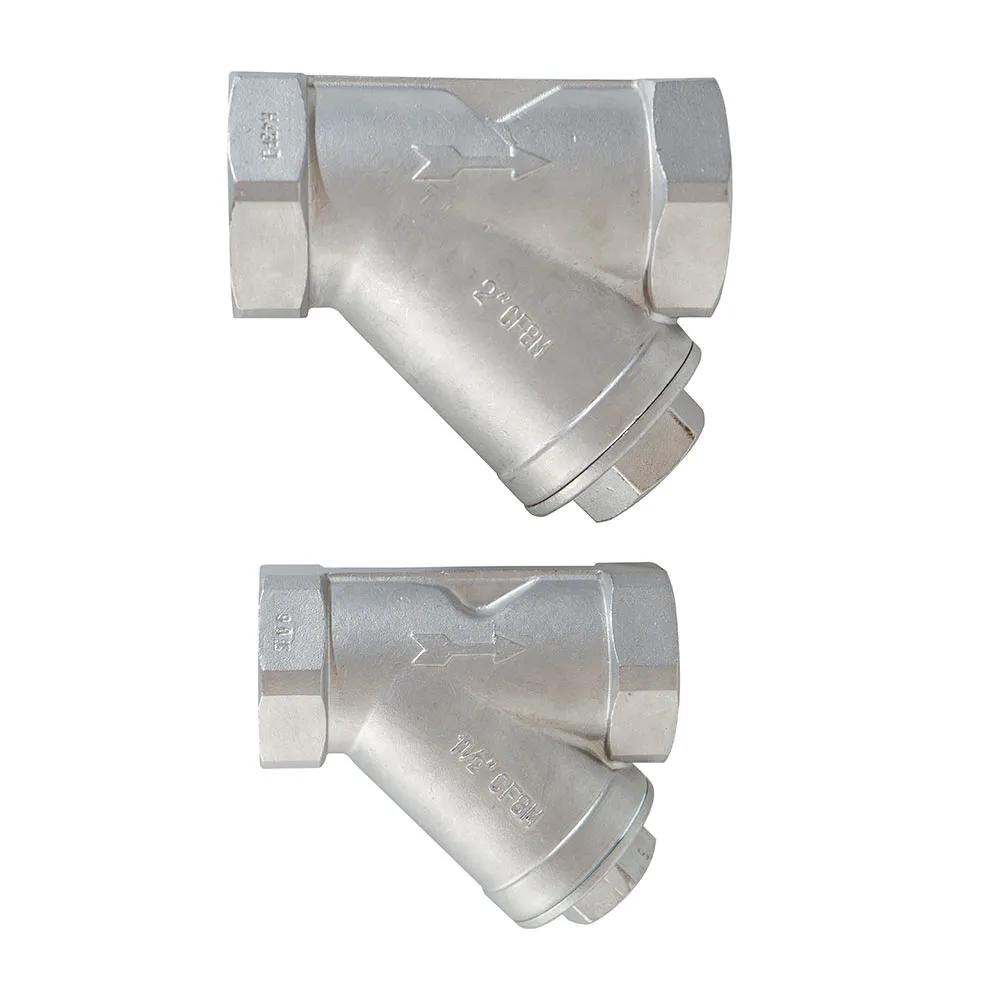

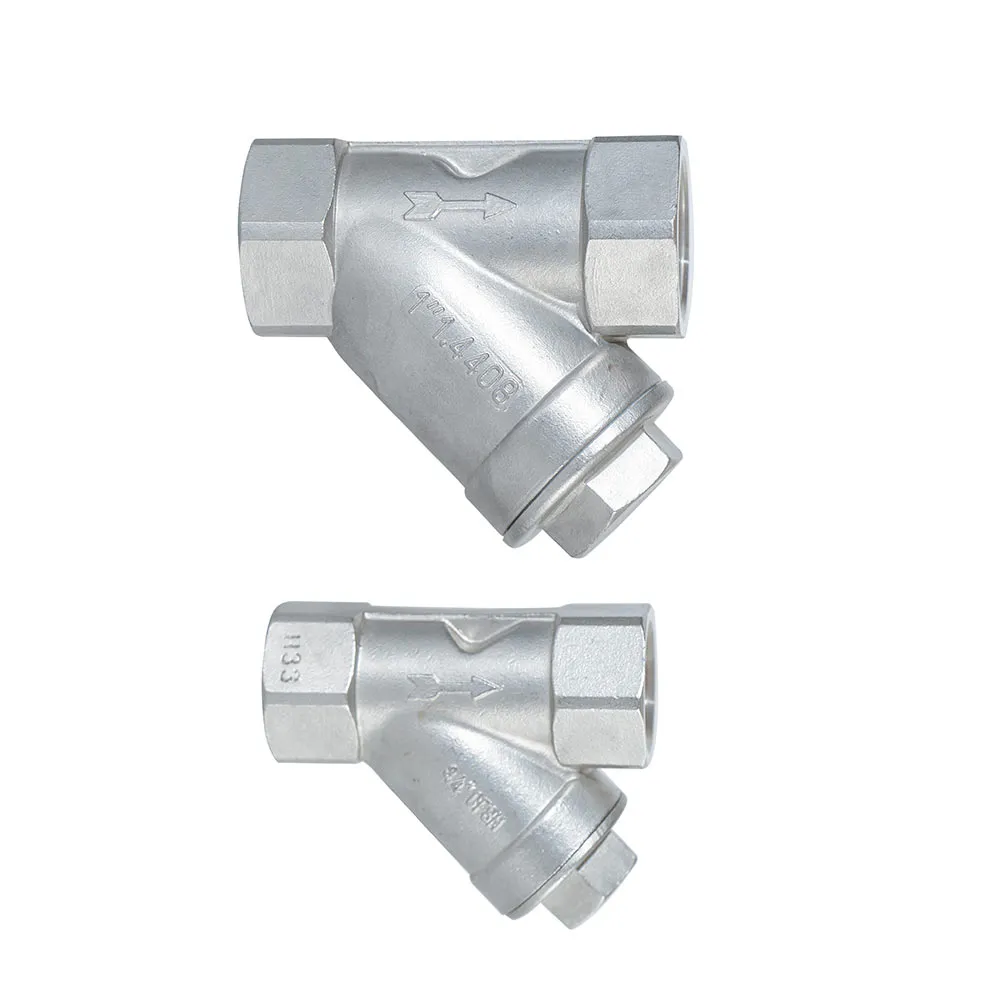

If you spend time around pump rooms and process skids, you know a good stainless steel y type strainer can make or break uptime. To be honest, it’s the humble guardian of valves, meters, and heat exchangers—quietly catching grit before it becomes a maintenance headache. The Y-Strainer from Houde Valve—built in Liupangzhuang Village, Nanchentun Town, Yunhe District, Cangzhou, Hebei, China—has been popping up in more RFQs lately, and for good reasons I’ll get into.
Industry pulse
Two trends stand out: tighter solids control in water-reuse loops, and higher cleanliness requirements in food, pharma, and fine chemicals. In fact, many customers say they’re swapping legacy cast iron for stainless steel y type strainer units to reduce rust shedding and keep CIP cycles consistent. Also, ESG reporting nudges plants toward longer-life components—316/316L housings fit that bill.
Technical snapshot
Here’s the essentials I verify on spec sheets, with real-world tolerances in mind.
| Parameter | Typical Spec (≈) | Notes |
|---|---|---|
| Body/Cap | CF8/CF8M (304/316) | ASTM A351; 316/316L favored for chlorides |

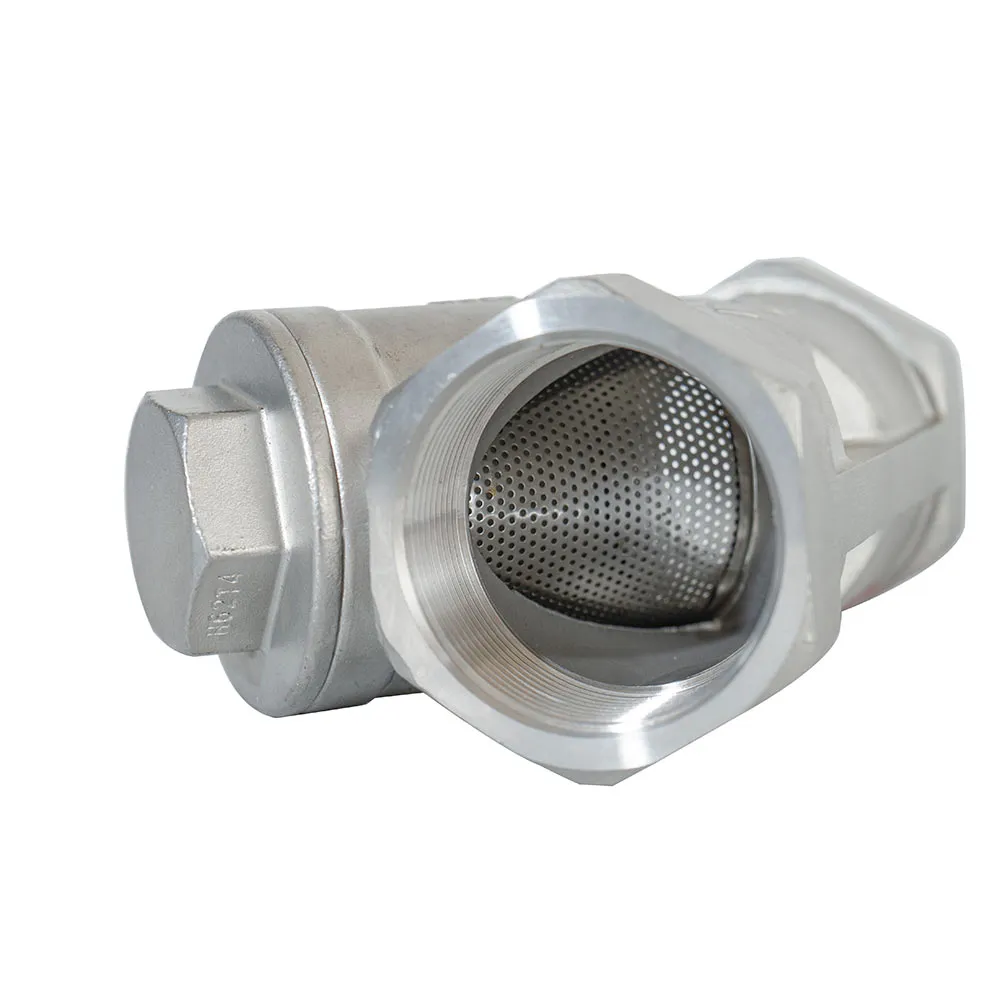

| Screen | SS 304/316, 20–200 mesh | Perforated + mesh liner for finer capture |
| Pressure Rating | Class 150/300 or PN16/25 | Check flange class match |
| Temp Range | -29 to 400°C | Gasket choice impacts upper limit |
| Ends | RF flanged, NPT/ISO threads, BW | ASME B16.5/B1.20.1/B16.25 |
| Filtration Area | ≈2.5–3.5× pipe ID area | Lower ΔP, longer run-time |
How it’s made (and tested)
Materials: CF8/CF8M casting, laser-etched heat number; screens in SS wedge-wire or perforated plate plus mesh. Methods: precision casting, CNC machining, TIG-welded screens, PTFE/graphite gaskets. Testing: PMI on heats; hydrostatic shell/seat per API 598; dimension check to ASME B16.34; surface Ra checks for hygienic variants; optional EN 10204 3.1 certs. Service life? Around 8–15 years in normal water/steam duty—obviously, abrasives can shorten that.
Where it earns its keep
- Water treatment and desal lines (silica, rust fines) - HVAC/steam loops in hospitals and campuses - Food & beverage syrup lines (pre-filter before magnetic traps) - Pharma utilities (WFI loops prefer polished versions) - Petrochem transfer and solvent recovery. Advantages: compact footprint, easy blow-down, reliable protection for control valves. I guess the only “watch-out” is mesh selection—go too fine and you’ll babysit pressure drop.
Vendor snapshot (indicative)
| Vendor | Materials | Certs | Lead Time ≈ | Notes |
|---|---|---|---|---|
| Houde Valve (Cangzhou) | CF8/CF8M, 3.1 docs | ISO 9001, API 598 test | 2–5 weeks | Wide mesh options; custom flanges |
| Vendor X | 304/316 | ISO 9001 | 4–7 weeks | Standard meshes only |
| Vendor Y | 316L | 3.1 optional | 3–6 weeks | Polished hygienic option |
Customization and selection tips
Options include blow-off valve ports, magnetic inserts, duplex screens, and electropolishing. For a stainless steel y type strainer on viscous media, go larger body size to keep velocity down. Steam? Choose graphite gaskets and ensure seat tests per API 598 are documented. Corrosives? Lean 316L and consider NACE MR0175 compliance.
A quick field story
A beverage plant swapped basket strainers for stainless steel y type strainer units on syrup transfer. Result: ΔP stabilized from 0.5–0.7 bar down to ≈0.2 bar, CIP time cut by ~18%, and no downstream seat damage for a full quarter. Their maintenance lead told me, “Simple, rugged, and the screen actually survives our night shift.”
Standards and references
[1] API 598 – Valve Inspection and Test
[2] ASME B16.34 – Valves – Flanged, Threaded, and Welding End
[3] ASME B16.5 – Pipe Flanges and Flanged Fittings; ASME B1.20.1 – NPT Threads; ASME B16.25 – BW Ends
[4] ASTM A351 – Castings, Austenitic Stainless Steel (CF8/CF8M)
[5] ISO 9001 – Quality Management Systems; EN 10204 3.1 – Inspection Certificates; NACE MR0175/ISO 15156 – Materials in H2S service
