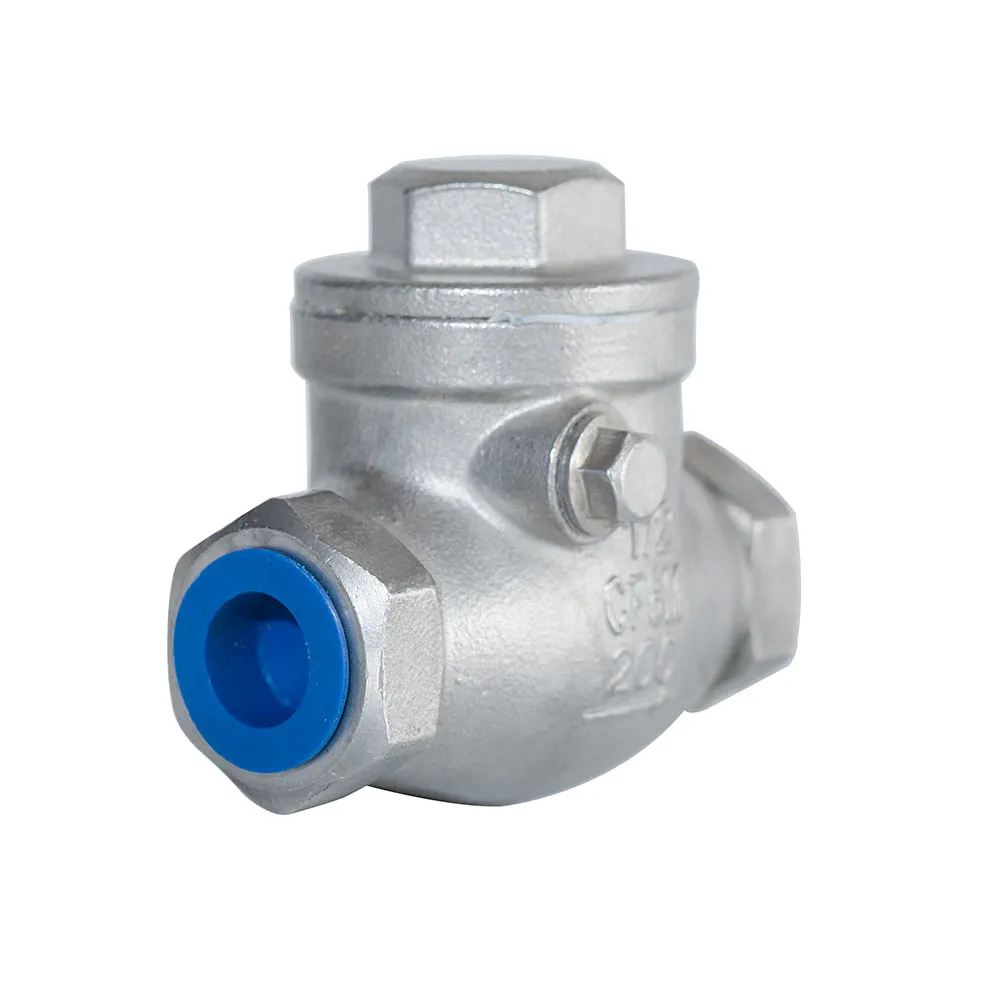

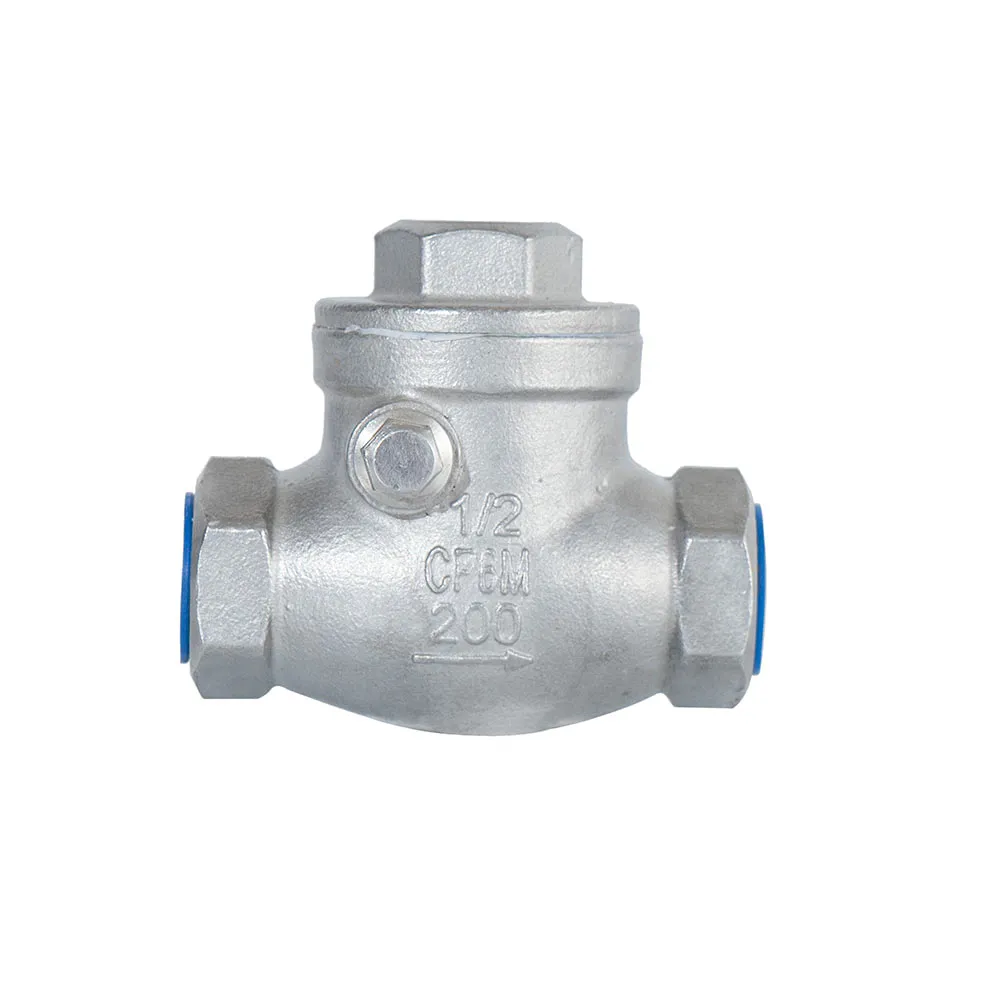

Swing Check Valve Types — the insider’s field guide

If you handle liquids or gases for a living, you already know the quiet heroes in the line are check valves. And among them, Swing Check Valve Types still carry a lot of weight. They’re simple, robust, and—when specified right—almost invisible in operation. I’ve seen them in water treatment backwash loops, refinery pump-out lines, chilled water plants; honestly, everywhere. The core idea is old-school: let flow pass one way, stop it cold the other.

Industry trend check: plants are shifting toward lower cracking pressure designs (saving pump energy), wafer bodies to cut weight, and non-slam accessories (lever/weight or dashpot) to tame water hammer. In corrosive service, CF8M is baseline; for sour gas, NACE-compliant trims come up in every bid meeting. And yes, digital twins and better lifecycle data are creeping in—slowly, but surely.

Typical product specs (what buyers actually ask for)

Parameter	Specification (≈ real-world)
Size range	DN50–DN1200 (2"–48")
Pressure class	PN10–PN40; ASME Class 150/300
Body materials	WCB, CF8, CF8M; duplex on request
Seat options	Metal-to-metal, or soft seat (EPDM/NBR/Viton)
Ends / F2F	Flanged RF, wafer, lug; ASME B16.10 face-to-face
Standards	API 594, BS 1868; testing to API 598 / ISO 5208
Cracking pressure	≈0.03–0.07 bar (varies by size)
Temperature	-29°C to 200°C (elastomer dependent)
Service life	≈20–30 years with routine maintenance

From the foundries of Cangzhou—specifically Liupangzhuang Village, Nanchentun Town, Yunhe District, Hebei, China—this category has a deep supply chain. That’s partly why lead times are decent even for odd sizes.

Process flow and QA (the stuff that keeps engineers calm)

Materials: ASTM-grade castings (WCB, CF8/CF8M); MTRs to EN 10204 3.1 upon request.
Methods: precision machining of hinge pin bores; hardfacing (Stellite or similar) on seat/disc for erosive duty.
Testing: hydrostatic shell 1.5× rated pressure; seat test per API 598 (soft seat: no visible leakage; metal seat: within ISO 5208 Rate D/E).
Finishing: epoxy coat ≈250 μm for waterworks; metallic coatings for hot service.
Accessories: lever/weight, spring assist, dashpot (anti-slam retrofits help more than people expect).

Where Swing Check Valve Types shine

Water treatment and municipal supply, crude/product lines, chemical transfer, steel plant utilities, condenser cooling, and firewater loops. Many customers say the “set-and-forget” nature is the appeal—until a surprise backflow event reminds everyone why the spec matters.

Vendor snapshot (apples-to-apples, as much as possible)

Vendor	Origin / Notes	Typical certs	Size & Class	Lead time	Customization
Houde Valve	Cangzhou, Hebei, China	ISO 9001; EN 10204 MTRs	DN50–DN1200; Class 150/300	≈3–8 weeks (config dependent)	Materials, trims, anti-slam kits
Global Brand A	EU/US manufacturing mix	ISO 9001, PED, ATEX (where relevant)	DN25–DN1000; wide	≈6–12 weeks	High; extensive documentation
Regional Shop B	APAC assembly	ISO 9001 (varies)	DN50–DN600	≈2–6 weeks	Limited; fast turnaround

Customization options

Trim upgrades: 13Cr/316/duplex; hardfaced discs and seats.
Elastomers: EPDM for water, NBR for oils, FKM for high temp chemicals.
Anti-slam: lever/weight, spring-assist, external dashpot.
End connections: flanged, wafer, butt-weld for compact skids.

Field notes and test data

Factory seat tests routinely hit “no visible leakage” on soft seats (API 598). Metal seats show tiny seepage within ISO 5208 Rate D/E—normal, and usually acceptable. In one chilled-water retrofit, a spring-assisted 10" wafer check reduced reverse flow duration by ≈40% (operator logs). Another case—a coastal power plant—reported fewer pump trips after adding dashpots to 16" Class 150 swing checks. Not glamorous, but effective.

Bottom line: when specified against your fluid, temperature, and shutdown profile, Swing Check Valve Types keep your system stable and your pump curves honest. To be honest, the best compliment they get is silence.
