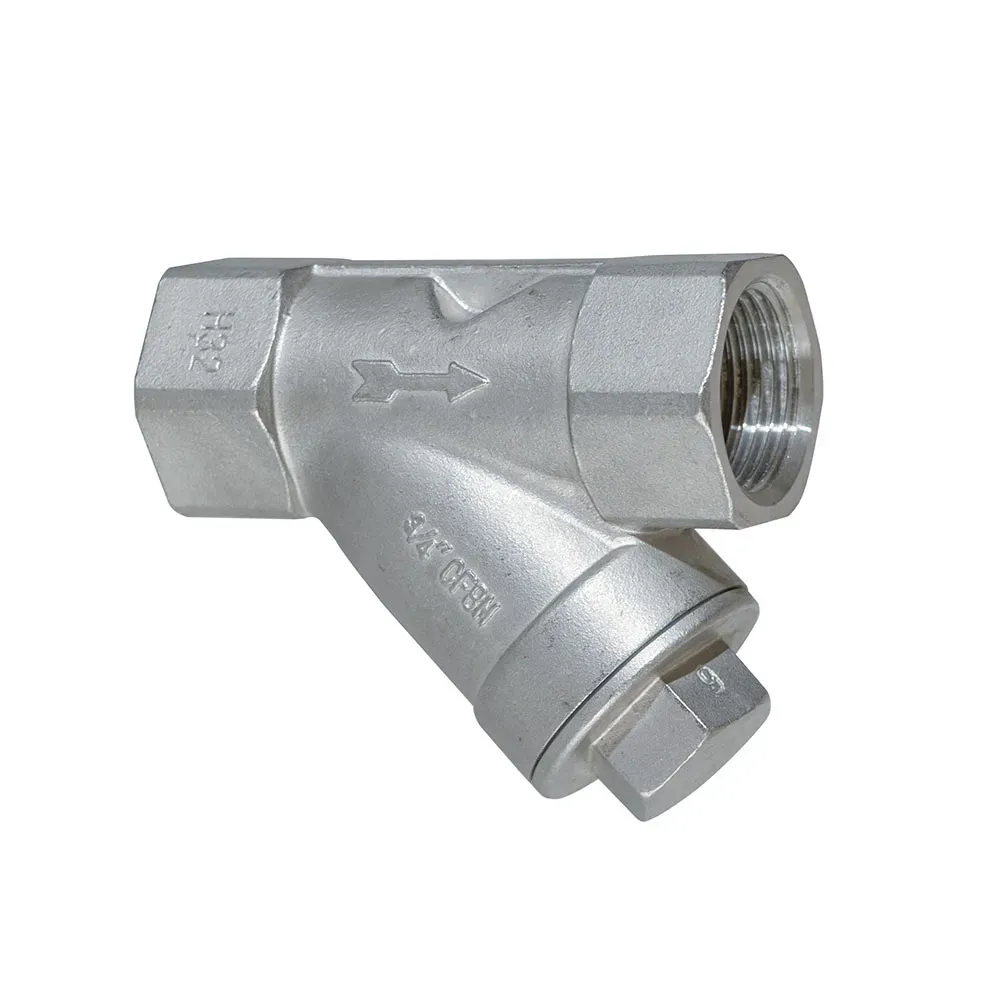

In industrial fluid control systems where space and reliability matter, Y check valves deliver exceptional performance. These compact valves, available in sizes from 1/4" to 3", handle pressures up to 800PSI/PN40 while preventing dangerous backflow. The unique Y type check valve design features a spring-assisted closure mechanism that ensures rapid response and positive sealing. Manufactured through investment casting and compliant with PED97/23/EC (0036) and AD2000-W0 standards, these valves offer superior durability for oil & gas, chemical processing, and power generation applications. With multiple thread options including ASME B1.20.1 and BS21.0, they integrate seamlessly into global piping systems while meeting rigorous inspection testing requirements per API598 and EN12266.
Why Y Spring Check Valves Outperform Conventional Designs
The Y spring check valve represents a significant advancement in backflow prevention technology. Unlike traditional swing check valves, the Y type design incorporates a spring-loaded disc that closes immediately when flow stops, eliminating water hammer and preventing reverse flow. This check valve Y type configuration is particularly effective in vertical piping systems where gravity-assisted designs might fail. The spring mechanism in Y check valves ensures consistent performance regardless of installation orientation, making them ideal for space-constrained applications in refineries, power plants, and chemical processing facilities where reliable backflow prevention is critical.
Superior Construction of Y Type Check Valves
Manufactured using precision investment casting, Y check valves achieve exceptional strength and corrosion resistance. The Y type check valve body is typically cast from stainless steel or special alloys to withstand aggressive media and high-pressure conditions up to 800PSI/PN40. Critical components like the spring and disc are engineered from high-grade materials to ensure long service life even in demanding environments. The compact Y spring check valve design not only saves space but also reduces weight compared to conventional check valves, while still meeting stringent inspection testing standards including API598 for leak-tight performance and EN12266 for quality assurance.
Global Thread Compatibility for Universal Y-Type Check Valve Installation
One key advantage of Y check valves is their compatibility with multiple international threading standards. Available with ASME B1.20.1 (NPT), BS21.0 (BSP), DIN2999/259, and ISO228-1 connections, these check valve Y type solutions can be installed in virtually any piping system worldwide. The Y type check valve design is particularly valued in instrumentation lines, compressor stations, and high-pressure steam systems where compact dimensions and reliable performance are paramount. Leading manufacturers offer these valves in various material grades to handle everything from cryogenic fluids to high-temperature hydrocarbons, all while maintaining compliance with PED97/23/EC and AD2000-W0 pressure equipment directives.
Maintenance-Free Reliability of Y-Spring Check Valves
The efficient design of Y spring check valves translates to reduced maintenance requirements and extended service intervals. Unlike conventional check valves that may suffer from disc flutter or slow closure, the Y type check valve with its spring-assisted action provides consistent, reliable operation cycle after cycle. The streamlined flow path in Y check valves minimizes turbulence and pressure drop while preventing debris accumulation that could impair valve function. With proper selection from sizes 1/4" to 3", these valves deliver years of trouble-free service in critical applications, backed by comprehensive inspection testing protocols that ensure quality and reliability from factory to installation.
FAQs About Y Check Valves
What distinguishes Y type check valves from other designs?
The Y type check valve features a spring-loaded disc and angled body design that ensures rapid closure and compact installation, especially suited for high-pressure applications up to 800PSI/PN40.
Can Y spring check valves be installed in any orientation?
Yes, unlike gravity-dependent designs, the Y spring check valve performs reliably in horizontal, vertical, or angled installations due to its positive spring-assisted closure mechanism.
What materials are used in Y check valve construction?
Premium Y check valves are typically manufactured from stainless steel, alloy 20, or other corrosion-resistant materials using investment casting for superior strength and durability.
How are Y type check valves tested for quality?
These valves undergo rigorous inspection testing per API598 and EN12266 standards, including hydrostatic shell tests and seat leakage tests to ensure zero-leak performance.
Where are Y spring check valves most commonly used?
The Y spring check valve excels in oil & gas production, chemical processing, power generation, and other industries requiring compact, high-pressure backflow prevention solutions.
