Nano-scale Check Valves: The Unsung Heroes Powering Modern Medical Implants

In the ever-evolving landscape of medical technology, implantable devices are becoming smaller, smarter, and more integrated with the human body. At the heart of many of these sophisticated systems lies a critical component: the check valve. We are entering the realm of nano-scale check valve technology, where precision engineering meets human physiology to create miracles of modern medicine.

The core check valve function is simple: to allow fluid flow in one direction while preventing backflow. In a medical implant, this simple function becomes a matter of patient safety and treatment efficacy. A failure can mean under-dosing of a critical medication or the malfunction of an internal organ assist device.

Cangzhou Houde Stainless Steel Products Co., Ltd. brings over a decade of specialized expertise to this demanding field. As a professional enterprise dedicated to the research, development, and production of high-precision stainless steel products, our commitment to quality is unwavering. We are equipped with advanced production equipment and a top-notch technical team, operating under a strict quality management system. Our foray into the medical sector is driven by a mission: to create ultra-reliable, bio-compatible check valves that meet the exceptional demands of medical implant applications.

The Critical Role of the Check Valve in Medical Implant Function

Inside the human body, implants must operate flawlessly for years. The check valve in these devices acts as a silent guardian, a one-way gatekeeper for bodily fluids or therapeutic agents. In a drug delivery pump, a micro-check valve ensures a precise dose of medication is delivered and then seals shut to prevent dangerous backflow into the pump's mechanism. In devices like ventricular assist devices (VADs), check valves ensure that blood moves in a single, physiologically correct direction, replicating the function of natural heart valves. The check valve function here is fundamentally physiological, directly contributing to sustaining life and health.

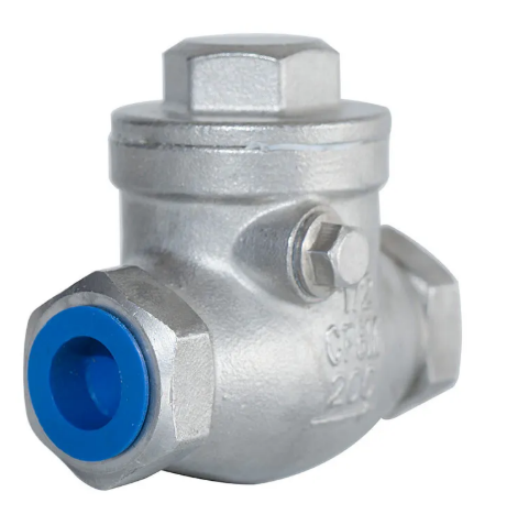

The Swing Check Valve: A Design Adapted for Miniaturization

Among various designs, the swing check valve offers distinct advantages for miniaturization. Its design consists of a disc that swings open on a hinge under forward flow pressure, offering a clear, unobstructed flow path with minimal pressure drop. When flow stops, backpressure forces the disc to swing shut, sealing against a seat.

This design translates well to the nano-scale. The swinging motion is a simple, reliable mechanism with few moving parts. The full-port design allows for the passage of sensitive fluids like blood without causing damage. The challenge is manufacturing this at a microscopic scale, requiring extraordinary precision to ensure a perfect, leak-tight seal. The technology for creating industrial-grade swing check valves forms the foundation for producing their medical-grade micro counterparts.

This table illustrates the high-quality standards we apply to our core product line. These same principles are intensified in developing our medical-grade nano-scale valves.

Engineering Perfection: Ensuring Flawless Check Valve Function

Creating a perfect nano-scale check valve is a multidisciplinary endeavor. It begins with bio-compatible materials like medical-grade 316L stainless steel or titanium alloys, chosen for their inertness and durability.

The manufacturing process is key. Techniques like Investment Casting are adapted for creating complex, tiny components. For even smaller scales, photochemical etching and micro-machining are employed. The most critical step is finishing. Precise Grinding achieves the flawless, ultra-smooth sealing surfaces required for the valve seat and disc. Every component is subject to rigorous inspection and testing, often using helium leak detection to verify zero-leakage performance, ensuring the check valve function is flawless before implantation.

FAQs About Our Nano-scale Check Valves

What are the advantages of a nano-scale swing check valve design?

The swing check valve design is ideal for miniaturization due to its simplicity and reliability. It features minimal moving parts, reducing potential failure points. It provides a full, unobstructed flow path that minimizes pressure drop and prevents damage to sensitive biological fluids, ensuring precise check valve function for drug delivery.

How does your check valve function ensure zero leakage?

We ensure zero leakage through a multi-faceted approach: Precise Grinding creates atomically smooth mating surfaces between the disc and seat. Ultra-precise manufacturing ensures perfect hinge alignment. Finally, each valve undergoes rigorous helium leak testing, guaranteeing absolute fluid isolation and secure check valve function.

What Materials Are Used in Your Bio-Compatible Check Valves?

Our nano-scale check valves are fabricated from certified bio-compatible materials like medical-grade 316L stainless steel and titanium alloys, selected for their corrosion resistance and inertness. This ensures the long-term check valve function remains uncompromised by the physiological environment.

Can you customize a check valve for our specific implantable device?

Absolutely. Our engineering team collaborates directly with clients to create custom solutions—whether adapting a swing check valve design to an unconventional form factor or tailoring the check valve function to operate within a specific, very low pressure range. Your device's challenge is our design imperative.

How Do You Certify the Check Valve Function and Quality?

Our processes comply with ISO 13485 for medical devices. Every batch is traceable. Beyond leak testing, we perform rigorous material certification, dimensional inspections, and accelerated life testing to ensure the long-term reliability of the check valve and patient safety, certifying every check valve function.

The integration of precision nano-scale check valves is a key enabler for the next generation of medical implants. Cangzhou Houde stands ready to be your partner in this innovative future. Our journey is guided by advanced equipment, a strict quality system, and an experienced team. By collaborating with us, you are leveraging a decade of dedication to precision. Let us help you eliminate the worries of fluid control within your medical device, so you can focus on improving and saving lives.
